Body Code and Product Coding Matrix Blog

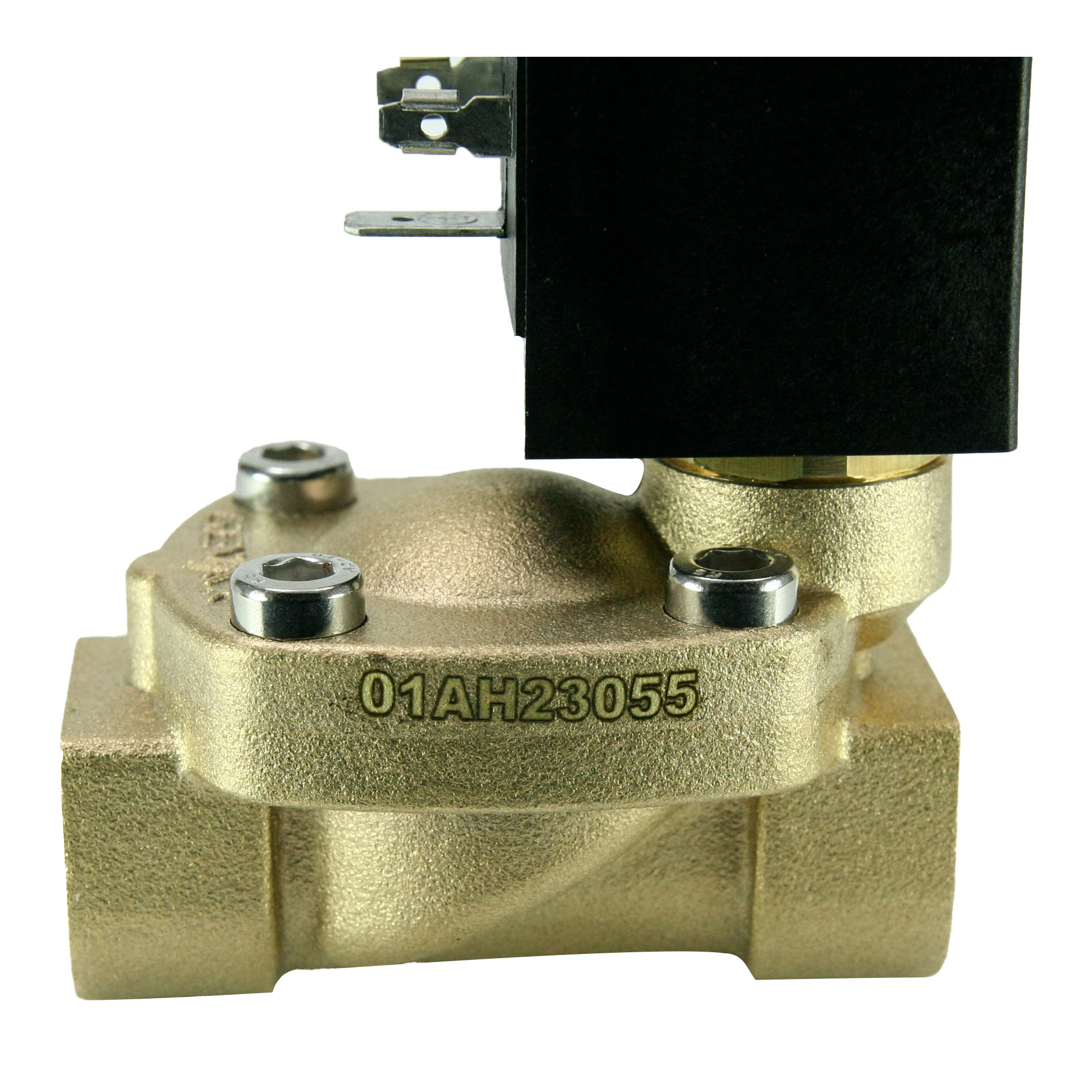

The first four characters of the code we write on the product represent the "Body Code" of the valve. The first two digits of the Body Code are numbers and the last two are letters. (Ex; 02IL)

You can search with "Body Code" while searching for the product.

If the first two digits of the Body Code are between 00-69, the product is "Normally Closed",
                                                              between 70-99 indicates that the product is "Normally Open".

The last five digits of the code on the product consist of numbers and represent the production year and day of the product.

For example; If it is coded as _ _ _ _ 23055, it means that the product was manufactured and tested on the 55th day of 2023.

With this 9-digit code group, it is possible to trace back all the parts that make up the valve.

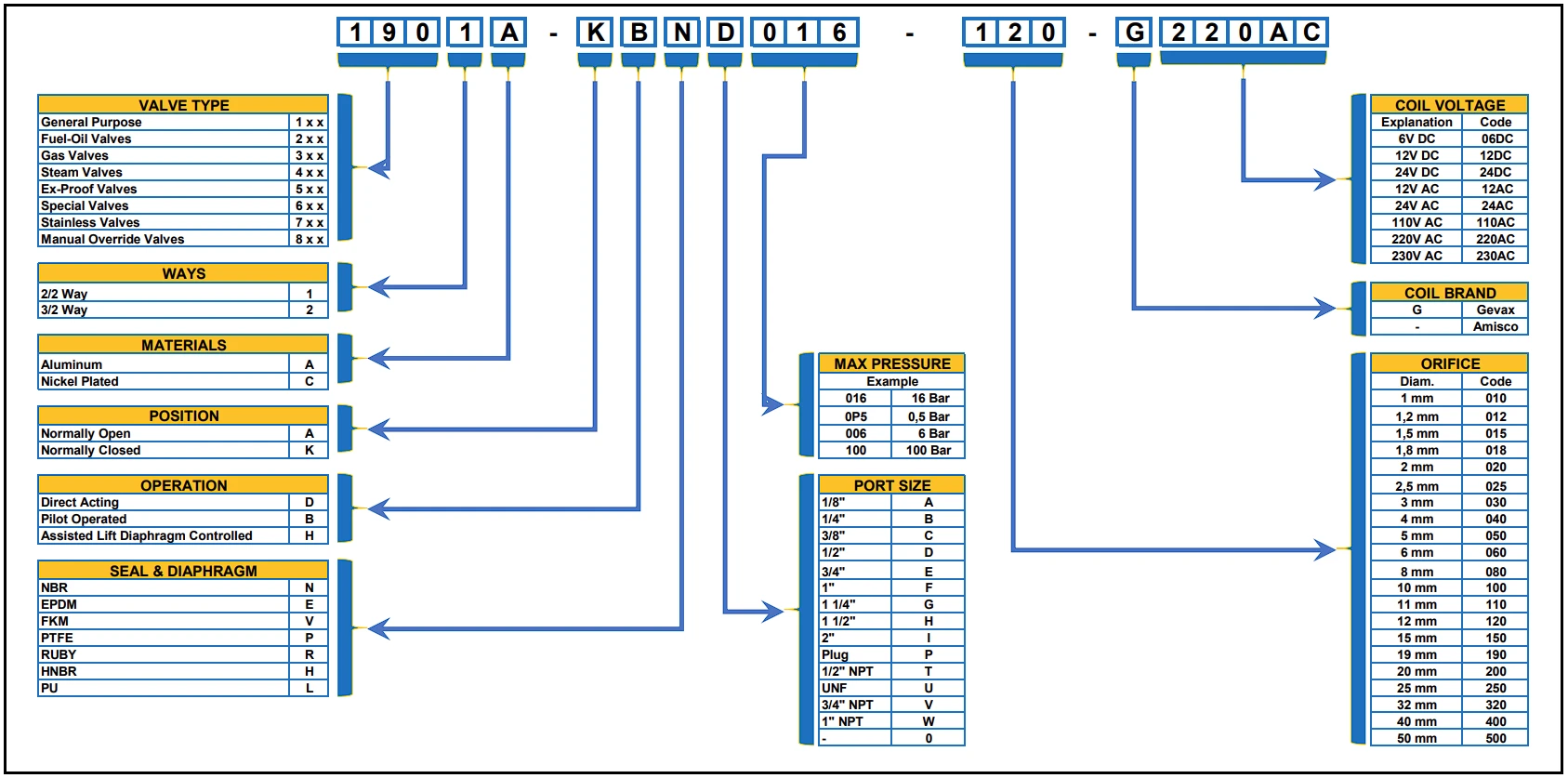

An easy-to-understand numbering system is used in the GEVAX Solenoid Valve, showing the functional criteria that play a role in product selection. The expansion of the code system is shown with the matrix below;
