1302-KDEA007-015-G220AC I 1/8" N.C. 3/2 Ways Direct Acting EPDM 0 - 7 Bar G220V AC 8.5 VA
Log in to see prices here

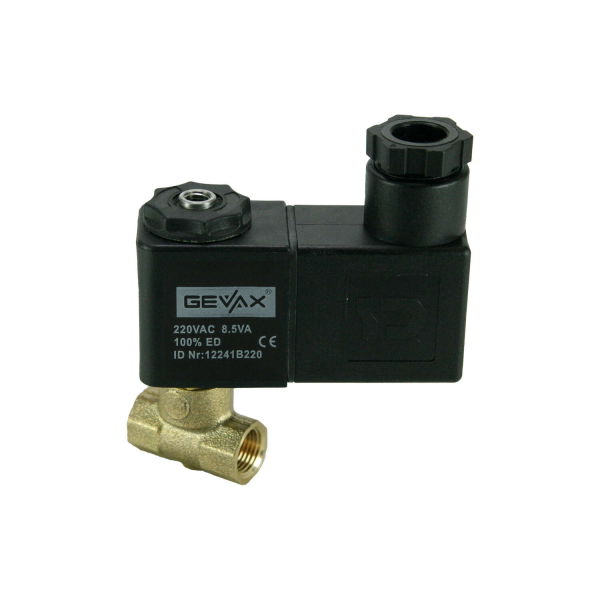

1/8" Solenoid Valve N.C. 3/2 Ways Direct Acting EPDM 0 - 7 Bar G220V AC 8.5 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Mini body, economic series, energy-efficient, compact size, low power consumption. Air, Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure, Pneumatic works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process
Product information
- Product code 1302-KDEA007-015-G220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 3/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 7 |
| Orifice Size (mm) | 1.5 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | GEVAX |
| Coil Voltage | 220V AC |
| Coil Power | 8.5 VA |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Coil Type | TP6 |
| Product Weight (kg.) | 0,075 |
