1401-KDNC040-060-220AC | 3/8' N.C. Servo Direct Acting NBR 0-40 Bar 220VAC 19VA
Log in to see prices here

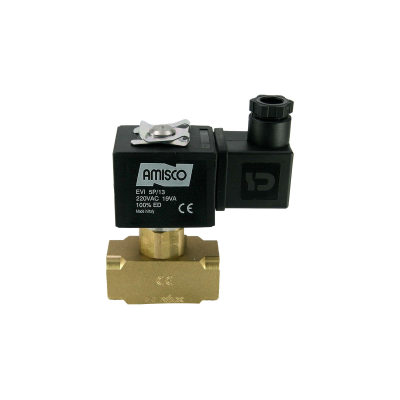

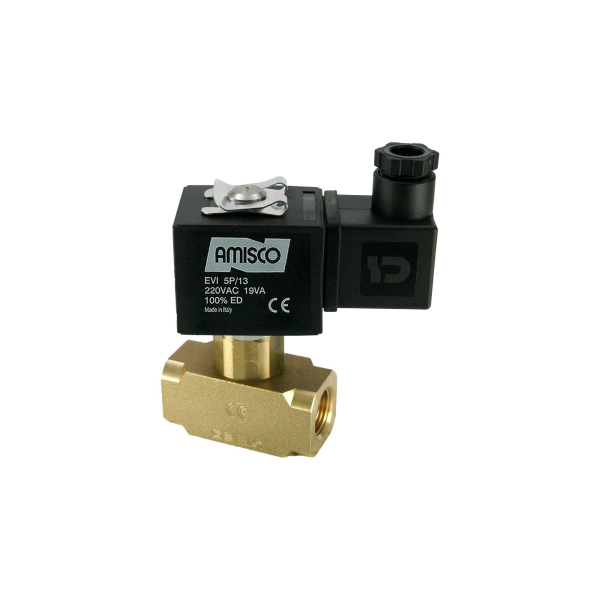

3/8" Solenoid Valve N.C. Servo Direct Acting NBR 0 - 40 Bar 220V AC 19 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Large orifice, high flow rate. Air, Water, Gas Recommended for use in applications such as etc. Zero Differantial Pressure, High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Sawing Machines, Machining Process, Renewable Energy
Product information
- Product code 1401-KDNC040-060-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 3/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 40 |
| Orifice Size (mm) | 6 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 10 l/min |
| Tracking Number | 01BF |
| Coil Type | TP4 |
