1501-KDND1P5-080-220AC | 1/2' N.C. Vacuum Direct Acting NBR 1-1.5 Bar 220VAC 19VA
Log in to see prices here

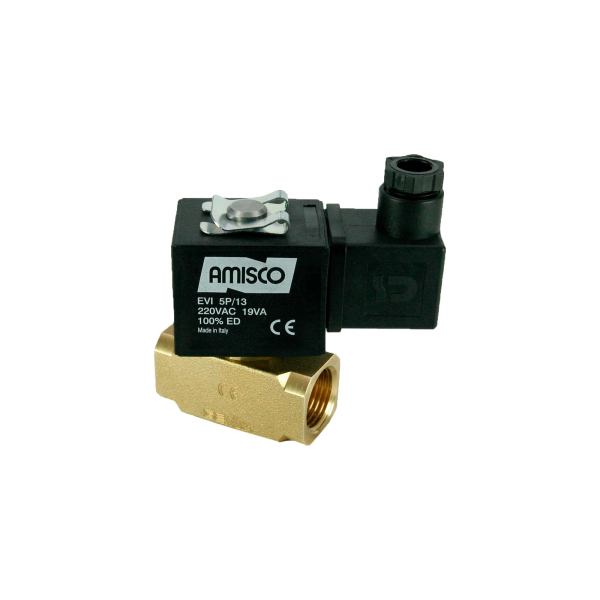

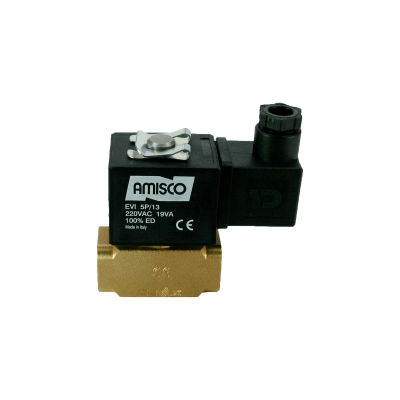

1/2" Solenoid Valve N.C. Vacuum Direct Acting NBR -1 - 1.5 Bar 220V AC 19 VA
The prominent features of the brass body normally closed vacuum solenoid valve you are reviewing: Variety in coil Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Wending Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Packaging machines
Product information
- Product code 1501-KDND1P5-080-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Vacuum Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | -1 |
| Max. Pressure (bar) | 1.5 |
| Orifice Size (mm) | 8 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 15 l/min |
| Tracking Number | 07VH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.445 |
