1501-KDVC006-050-24DC | 3/8" Solenoid Valve N.C. Vacuum Direct Acting FKM -1 - 6 Bar 24V DC 17 W
Log in to see prices here

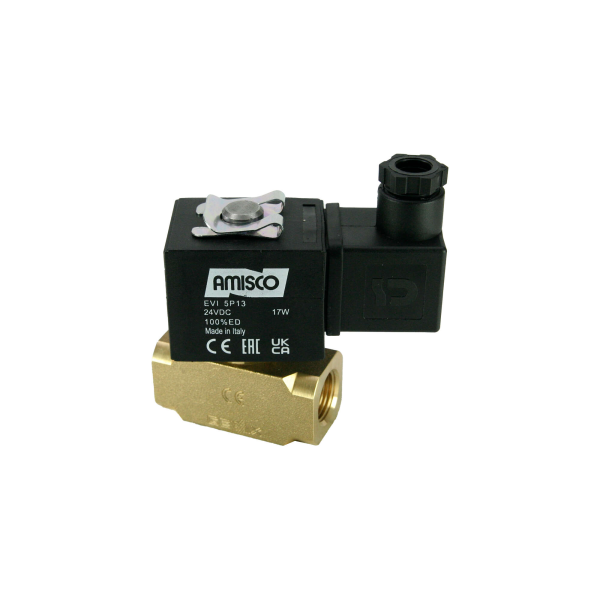

3/8" Solenoid Valve N.C. Vacuum Direct Acting FKM -1 - 6 Bar 24V DC 17 W
The prominent features of the brass body normally closed vacuum solenoid valve you are reviewing: Variety in coil Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Wending Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Packaging machines
Product information
- Product code 1501-KDVC006-050-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Vacuum Valves |
|---|---|
| Connection Size | 3/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | -1 |
| Max. Pressure (bar) | 6 |
| Orifice Size (mm) | 5 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 8 l/min |
| Tracking Number | 07AF |
| Coil Type | TP4 |
| Product Weight (kg.) | 0,485 |
