1701-KDV0016-020-24DC | N.C. Pilate FKM 0-16 Bar 24VDC 10W
Log in to see prices here

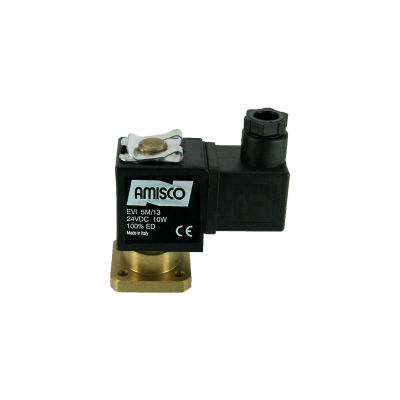

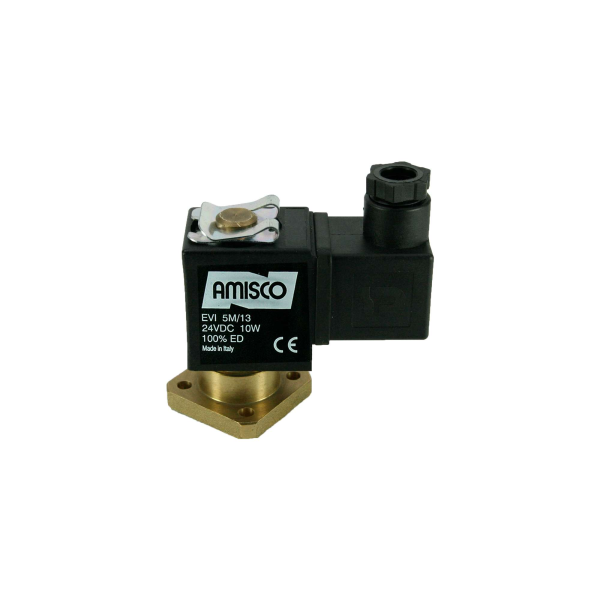

Solenoid Valve N.C. Pad Mounting FKM 0 - 16 Bar 24V DC 10 W
The prominent features of the brass body normally closed pad mounting solenoid valve you are reviewing: Can be used independently or as a group valve mounted on a manifold plate. Air, Water, Gas, Vacuum, Chemical, Hot Water, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Irrigation, Cooling, Lubrication, Compressor, Building Automation, Wending Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1701-KDV0016-020-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Plate Valves |
|---|---|
| Connection Size | No Size |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 10 W |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 02K- |
| Coil Type | TP1 |
| Product Weight (kg.) | Normalde Kapalı |
