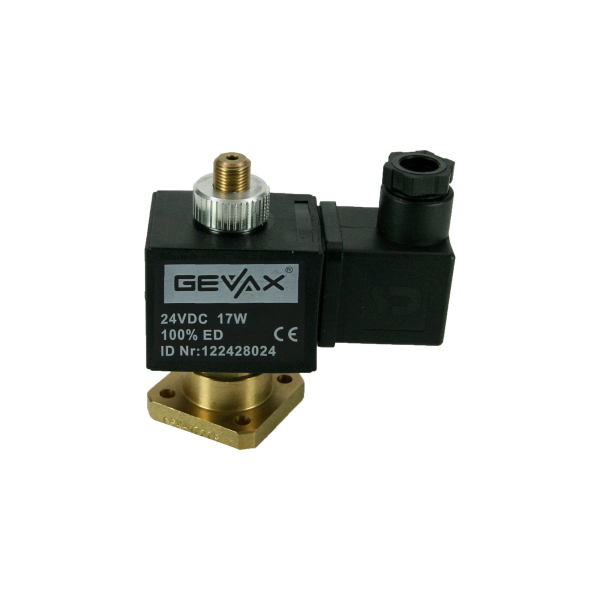

1702-KDN0010-015-G24DC | Solenoid Valve N.C. 3/2 Ways Pad Mounting NBR 0 - 10 Bar G24V DC 17 W
Log in to see prices here
Solenoid Valve N.C. 3/2 Ways Pad Mounting NBR 0 - 10 Bar G24V DC 17 W
The prominent features of the brass body normally closed pad mounting solenoid valve you are reviewing: Can be used independently or as a group valve mounted on a manifold plate. Air, Vacuum Recommended for use in applications such as etc. Pneumatic works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process
Product information
- Product code 1702-KDN0010-015-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Plate Valves |
|---|---|
| Connection Size | No Size |
| Number of Paths | 3/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 1.5 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 1 l/min |
| Tracking Number | 20K- |
| Coil Type | TP4 |
| Product Weight (kg.) | 0,365 |
