1731-KDV0016-015-220AC | N.C. Economical Serie Direct Acting FKM 0-16 Bar 220VAC 8.5VA
Log in to see prices here

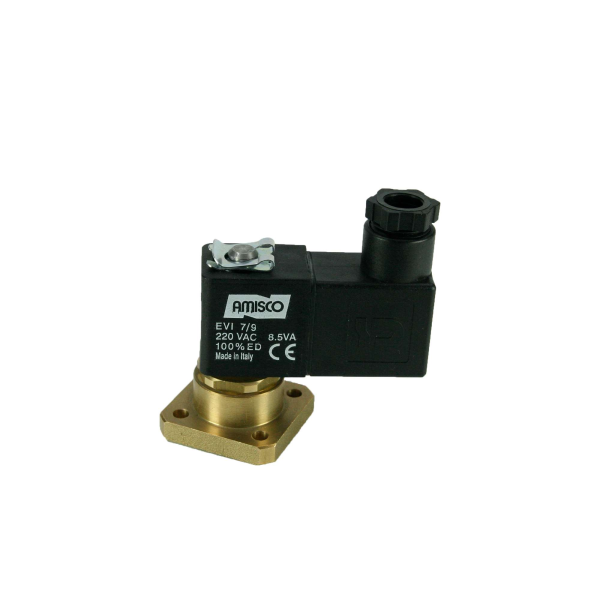

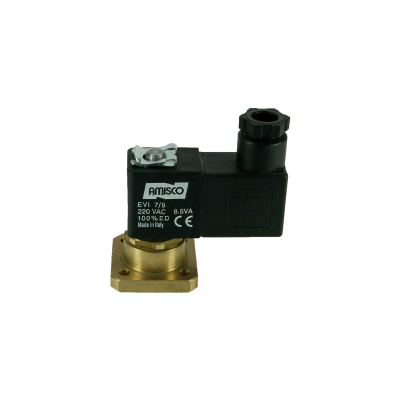

Solenoid Valve N.C. Economical Serie Pilate Direct Acting FKM 0 - 16 Bar 220V AC 8.5 VA
The prominent features of the brass body normally closed pad mounting solenoid valve you are reviewing: Can be used independently or as a group valve mounted on a manifold plate, energy-efficient. Air, Water, Gas, Vacuum, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Compressor, Wending Machines, Machining Process, Renewable Energy
Product information
- Product code 1731-KDV0016-015-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Plate Valves |
|---|---|
| Connection Size | No Size |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 1.5 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 8.5 VA |
| Body Material | Brass |
| KV Value | 1 l/min |
| Tracking Number | 04K- |
| Coil Type | TP6 |
| Product Weight (kg.) | 0.195 |
