1801-ABND040-120-220AC | 1/2' N.O. High Pressure Pilot Operated NBR 0.5-40 Bar 220VAC 19VA
Log in to see prices here

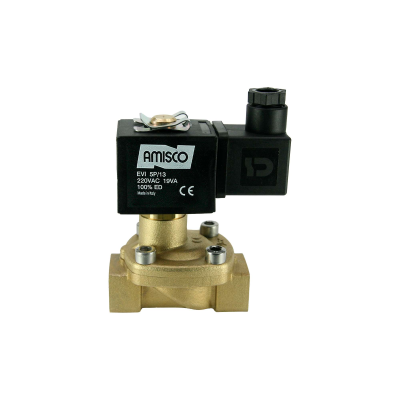

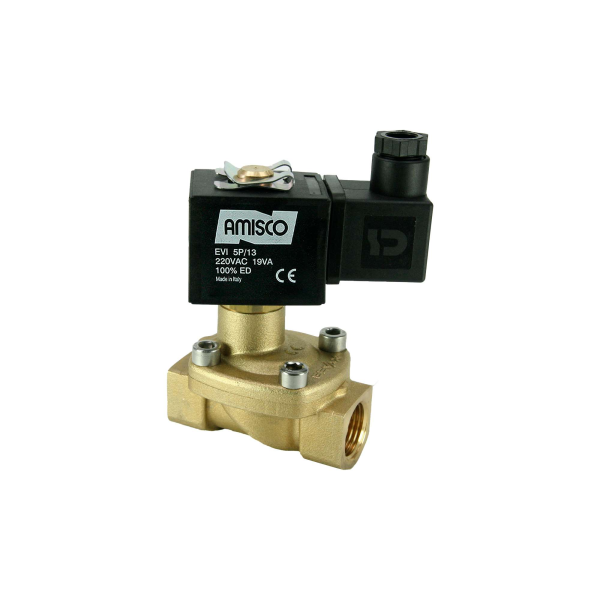

1/2" Solenoid Valve N.O. High Pressure Pilot Operated NBR 0.5 - 40 Bar 220V AC 19 VA
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Equipped with disk diaphragm, suitable for high-pressure liquid media. Water, Hot Water Recommended for use in applications such as etc. High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1801-ABND040-120-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 40 |
| Orifice Size (mm) | 12 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 55 l/min |
| Tracking Number | 81AH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.675 |
