1801-ADPA050-015-220AC | 1/8' N.O. Direct Acting PTFE 0-50 Bar 220VAC 19VA
Log in to see prices here

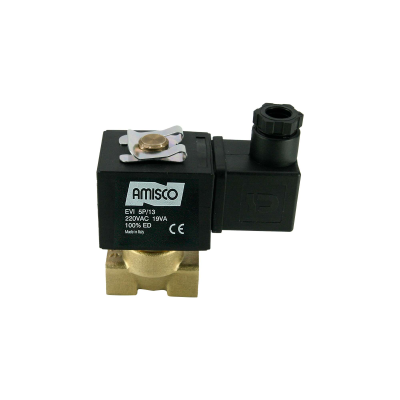

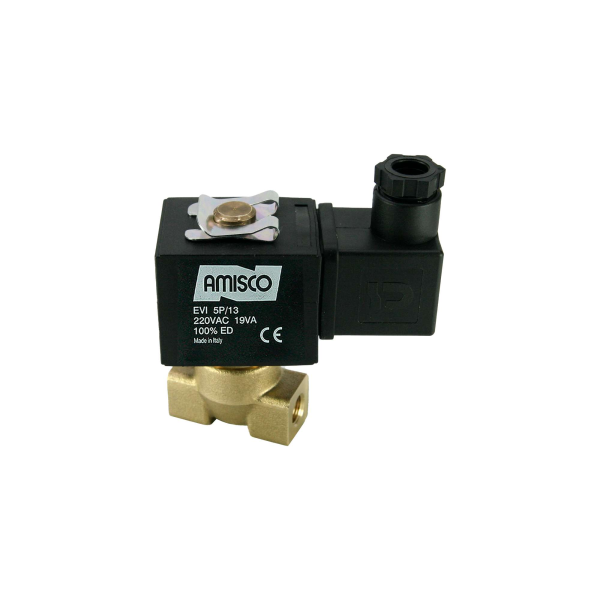

1/8" Solenoid Valve N.O. Direct Acting PTFE 0 - 50 Bar 220V AC 19 VA
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Having resistant sealing to high pressure. Water, Chemical, Hot Water, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure, High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Lubrication, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1801-ADPA050-015-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | PTFE |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 50 |
| Orifice Size (mm) | 1.5 |
| Temperature (°C) | -10°C +160°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 1 l/min |
| Tracking Number | 80AA |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.395 |
