1801-ADRB070-010-220AC | 1/4' N.O. High Pressure Direct Acting RUBY 0-70 Bar 220VAC 19VA
Log in to see prices here

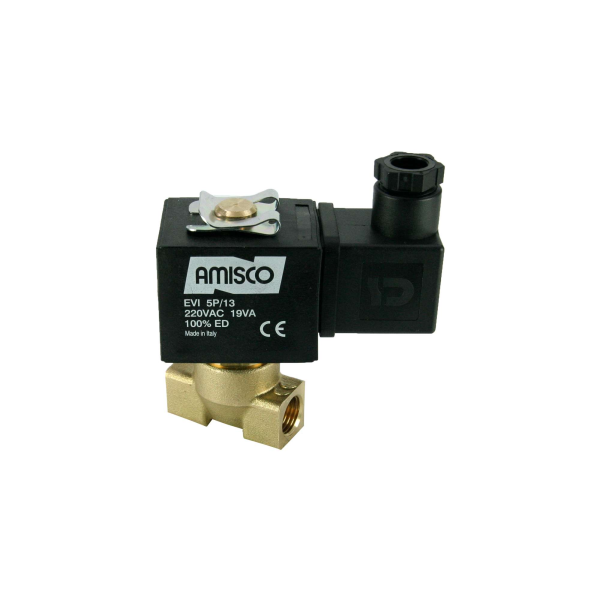

1/4" Solenoid Valve N.O. High Pressure Direct Acting RUBY 0 - 70 Bar 220V AC 19 VA
Product information
- Product code 1801-ADRB070-010-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | RUBY |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 70 |
| Orifice Size (mm) | 1 |
| Temperature (°C) | -10°C +160°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 0.6 l/min |
| Tracking Number | 96AC |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.375 |
