1801-KBNF040-250-G24DC | 1' N.C. High Pressure Pilot Operated NBR 0.5-40 Bar G24VDC 17W
Log in to see prices here

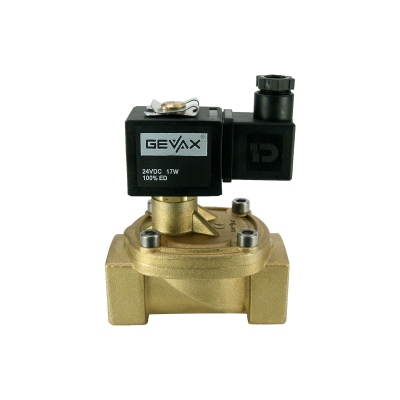

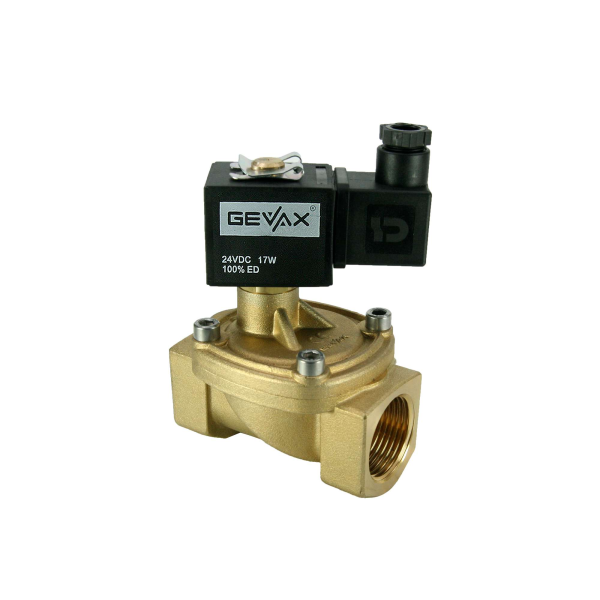

1" Solenoid Valve N.C. High Pressure Pilot Operated NBR 0.5 - 40 Bar G24V DC 17 W
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Equipped with disk diaphragm, suitable for high-pressure liquid media. Water, Hot Water Recommended for use in applications such as etc. High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1801-KBNF040-250-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 40 |
| Orifice Size (mm) | 25 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 100 l/min |
| Tracking Number | 13AO |
| Coil Type | TP4 |
| Product Weight (kg.) | 1.215 |
