1801-KBPE040-190-220AC | 3/4' N.C. High Pressure Pilot Operated PTFE 0.5-40 Bar 220VAC 19VA
Log in to see prices here

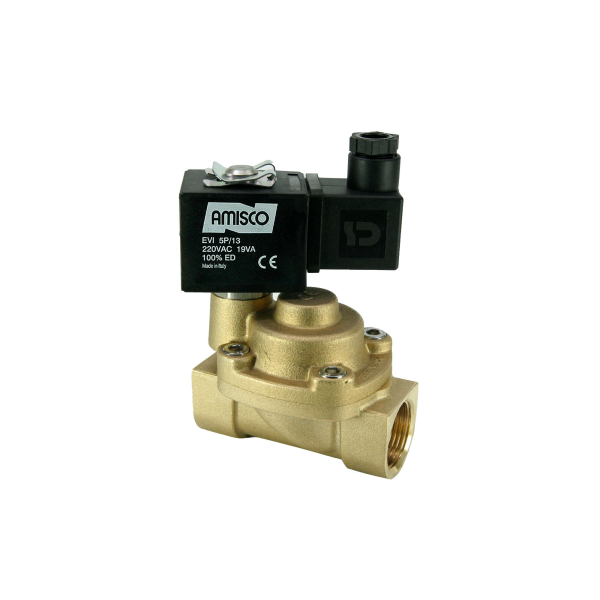

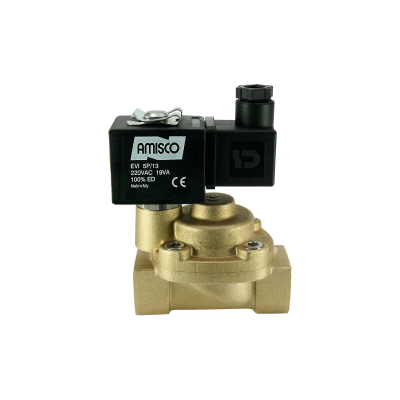

3/4" Solenoid Valve N.C. Brass Piston Pilot Operated PTFE 0.5 - 40 Bar 220V AC 19 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Brass piston, suitable for high-pressure liquid media. Water, Chemical, Hot Water Recommended for use in applications such as etc. High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1801-KBPE040-190-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 3/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | PTFE |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 40 |
| Orifice Size (mm) | 19 |
| Temperature (°C) | -10°C +160°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 70 l/min |
| Tracking Number | 16AL |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.865 |
