1801-KDRB100-010-220AC | 1/4' N.C. High Pressure Direct Acting RUBY 0-100 Bar 220VAC 19VA
Log in to see prices here

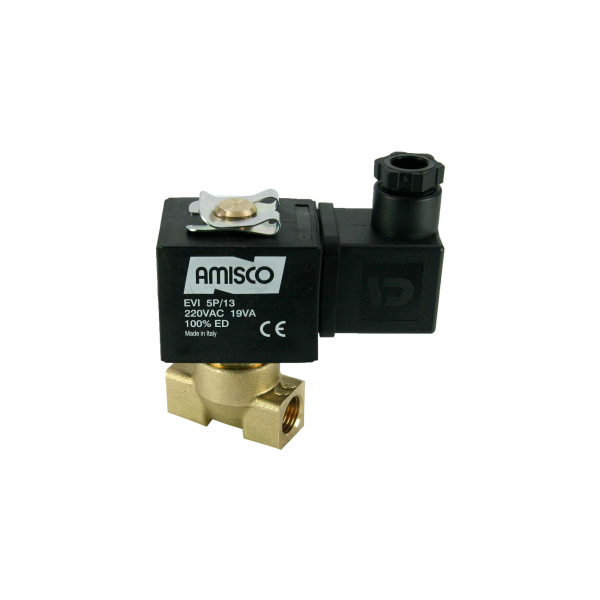

1/4" Solenoid Valve N.C. High Pressure Direct Acting RUBY 0 - 100 Bar 220V AC 19 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Having resistant sealing to high pressure. Water, Chemical, Hot Water, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure, High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Lubrication, Compressor, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1801-KDRB100-010-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | RUBY |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 100 |
| Orifice Size (mm) | 1 |
| Temperature (°C) | -10°C +160°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 0.6 l/min |
| Tracking Number | 11BC |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.375 |
