1811-KBND016-120-G24DC | 1/2' N.C. Low Diff. Pressure Pilot Operated NBR 0.1-16 Bar G24VDC 17W
Log in to see prices here

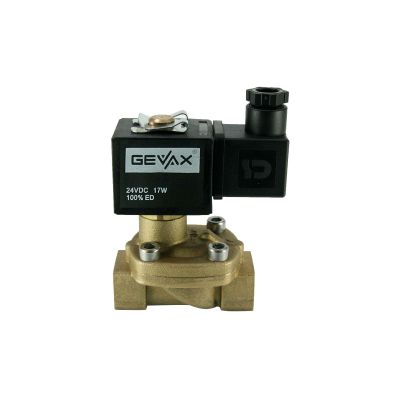

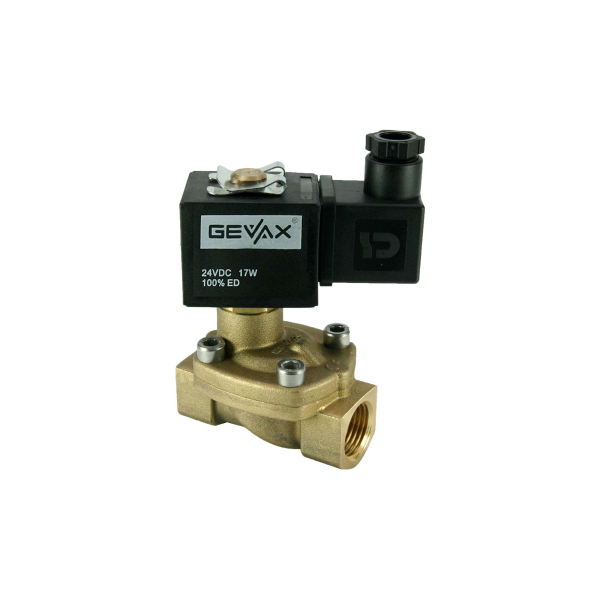

1/2" Solenoid Valve N.C. Low Differential Pressure Pilot Operated NBR 0.1 - 16 Bar G24V DC 17 W
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Diaphragm type. Air, Water, Gas, Chemical Recommended for use in applications such as etc. Diaphragm type, energy-efficient, wide coil options. works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Building Automation, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems
Product information
- Product code 1811-KBND016-120-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0.1 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 12 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 55 l/min |
| Tracking Number | 39AH |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.685 |
