1841-ABHD040-120-24AC | 1/2' N.O. For Compressor Pilot Operated HNBR 0.5-40 Bar 24VAC 19VA
Log in to see prices here

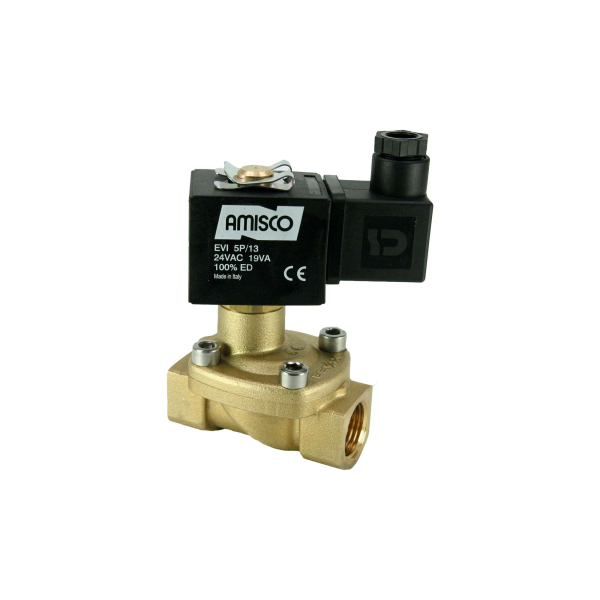

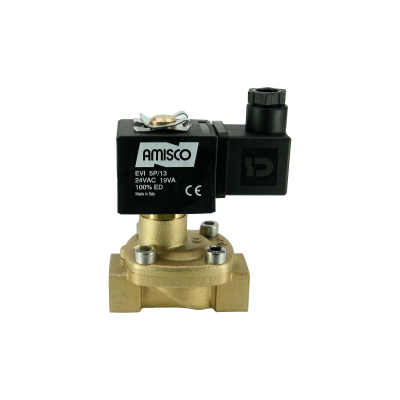

1/2" Solenoid Valve N.O. For Compressor Pilot Operated HNBR 0.5 - 40 Bar 24V AC 19 VA
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Equipped with disk diaphragm. Air, Water, Gas Recommended for use in applications such as etc. High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Compressor, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1841-ABHD040-120-24AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | HNBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 40 |
| Orifice Size (mm) | 12 |
| Temperature (°C) | -10°C +120°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 55 l/min |
| Tracking Number | 70AI |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.675 |
