1841-KBHF040-250-110AC | 1" Solenoid Valve N.C. For Compressor Pilot Operated HNBR 0.5 - 40 Bar 110V AC 19 VA
Log in to see prices here

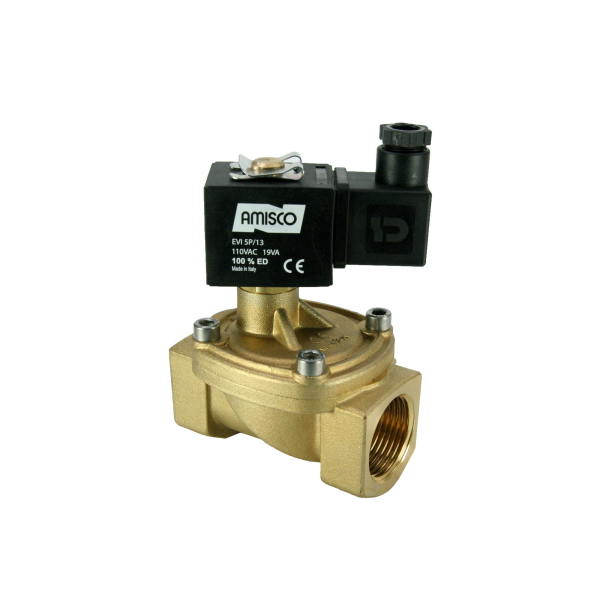

1" Solenoid Valve N.C. For Compressor Pilot Operated HNBR 0.5 - 40 Bar 110V AC 19 VA
Product information
- Product code 1841-KBHF040-250-110AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | HNBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 40 |
| Orifice Size (mm) | 25 |
| Temperature (°C) | -10°C +120°C |
| Coil Brand | Amisco |
| Coil Voltage | 110V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 100 l/min |
| Tracking Number | 31AO |
| Coil Type | TP4 |
| Product Weight (kg.) | 1.215 |
