1851-KBLE040-190-G24DC I 3/4" Solenoid Valve N.C. Piston for Air & Gas Pilot Operated PU 0.5 - 40 Bar G24V DC 17 W
Log in to see prices here

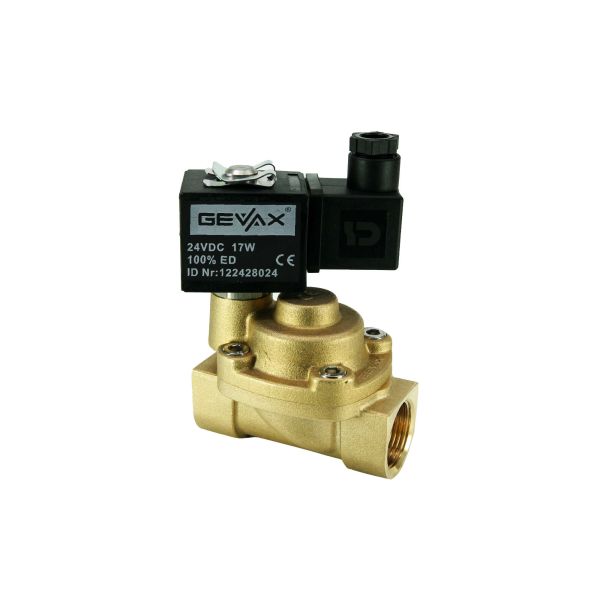

3/4" Solenoid Valve N.C. Piston for Air & Gas Pilot Operated PU 0.5 - 40 Bar G24V DC 17 W
Product information
- Product code 1851-KBLE040-190-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 3/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | POLYURETHANE |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 40 |
| Orifice Size (mm) | 19 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 105 l/min |
| Tracking Number | 29AL |
| Coil Type | TP4 |
| Product Weight (kg.) | 1,015 |
