1881-KBHF040-250-24DC | 1' N.C. For Oxygen Pilot Operated HNBR 0.5-40 Bar 24VDC 17W
Log in to see prices here

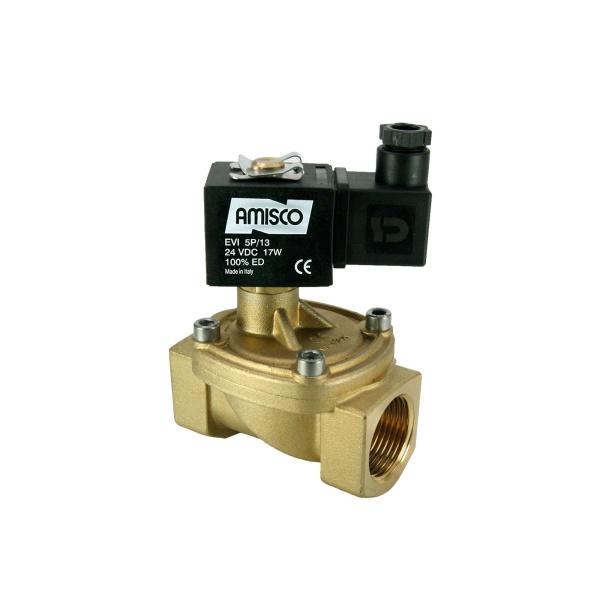

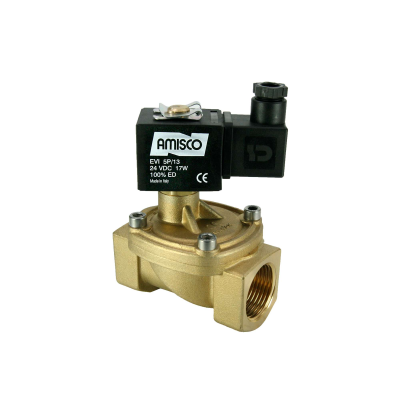

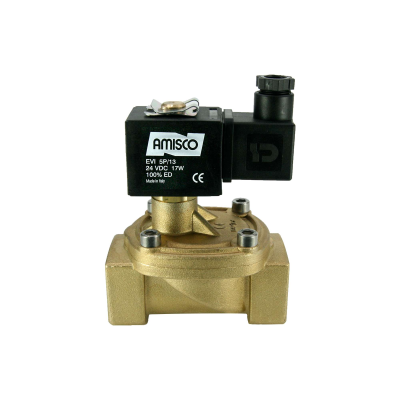

1" Solenoid Valve N.C. For Oxygen Pilot Operated HNBR 0.5 - 40 Bar 24V DC 17 W
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Diaphragm type with oxygen-specific internal components. Oxygen Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Renewable Energy, Recycling, Water Treatment
Product information
- Product code 1881-KBHF040-250-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | HNBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 40 |
| Orifice Size (mm) | 25 |
| Temperature (°C) | -10°C +120°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 180 l/min |
| Tracking Number | 40AO |
| Coil Type | TP4 |
| Product Weight (kg.) | 1.215 |
