1881-KDNB016-020-G24DC | 1/4' N.C. For Oxygen Direct Acting NBR 0-16 Bar G24VDC 17W
Log in to see prices here

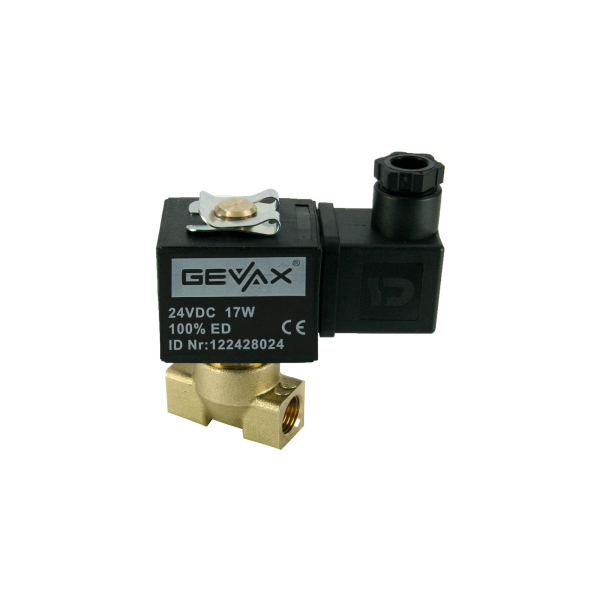

1/4" Solenoid Valve N.C. For Oxygen Direct Acting NBR 0 - 16 Bar G24V DC 17 W
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Special inner components for oxygen applications. Oxygen Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Renewable Energy, Recycling, Water Treatment
Product information
- Product code 1881-KDNB016-020-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 30AD |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.375 |
