1881-KHED006-150-220AC | 1/2' N.C. For Oxygen Assisted Lift Diaphragm Cont. EPDM 0-6 Bar 220VAC
Log in to see prices here

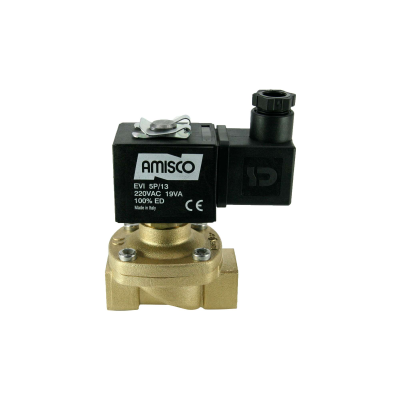

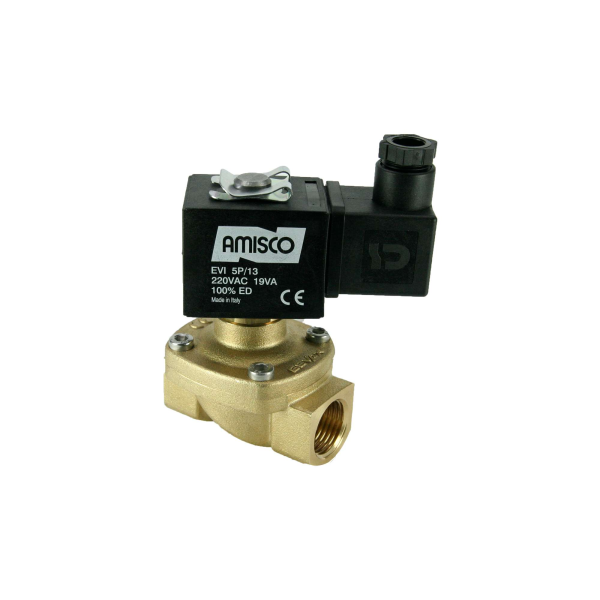

1/2" Solenoid Valve N.C. For Oxygen Assisted Lift Diaphragm Controlled EPDM 0 - 6 Bar 220V AC 19 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Diaphragm type with oxygen-specific internal components. Oxygen Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Renewable Energy, Recycling, Water Treatment
Product information
- Product code 1881-KHED006-150-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Diaphragm Controlled |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 6 |
| Orifice Size (mm) | 15 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 65 l/min |
| Tracking Number | 12AI |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.625 |
