1901-ABEC016-100-24DC | 3/8' N.O. Pilot Operated EPDM 0.5-16 Bar 24VDC 17W
Log in to see prices here

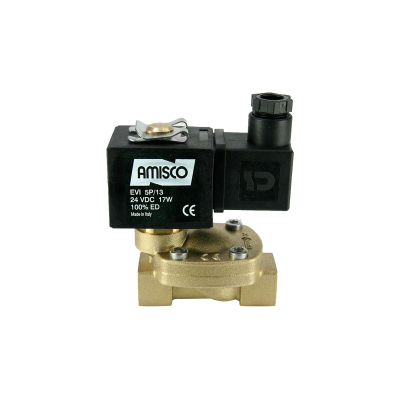

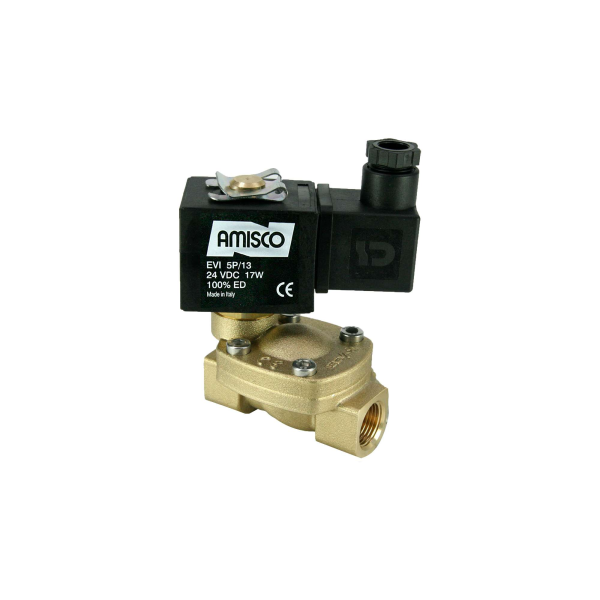

3/8" Solenoid Valve N.O. Pilot Operated EPDM 0.5 - 16 Bar 24V DC 17 W
Product information
- Product code 1901-ABEC016-100-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 3/8" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 10 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 30 l/min |
| Tracking Number | 78AF |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.595 |
