1901-ABED016-120-24DC | 1/2' N.O. Pilot Operated EPDM 0.5-16 Bar 24VDC 17W
Log in to see prices here

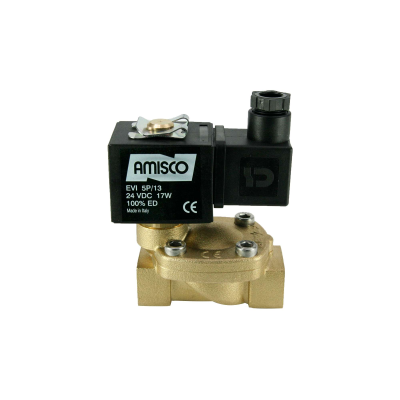

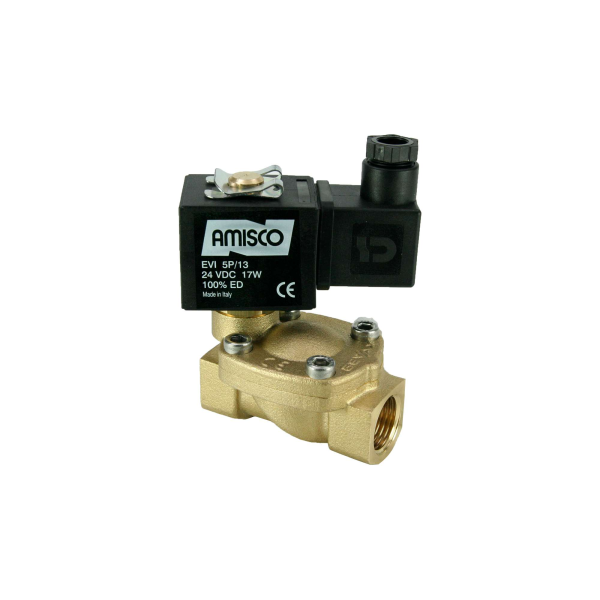

1/2" Solenoid Valve N.O. Pilot Operated EPDM 0.5 - 16 Bar 24V DC 17 W
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Diaphragm type, wide application range, high flow rate, wide coil options. Air, Water, Gas, Chemical, Hot Water Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Compressor, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1901-ABED016-120-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 12 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 65 l/min |
| Tracking Number | 76AH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.655 |
