1901-ABNI010-500-G12DC | 2' N.O. Pilot Operated NBR 0.5-10 Bar G12VDC 17W
Log in to see prices here

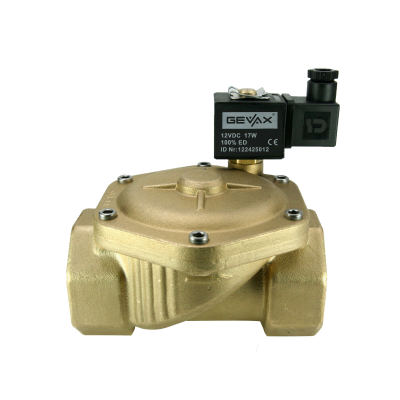

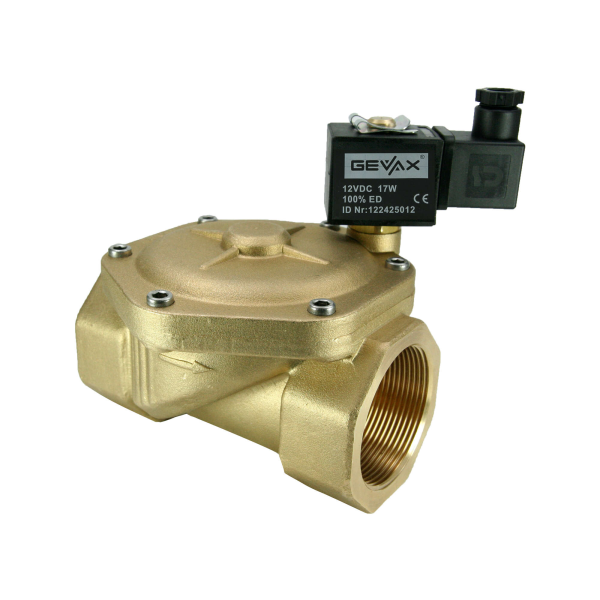

2" Solenoid Valve N.O. Pilot Operated NBR 0.5 - 10 Bar G12V DC 17 W
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Diaphragm type, wide application range, high flow rate, wide coil options. Air, Water, Gas, Chemical, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Lubrication, Compressor, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1901-ABNI010-500-G12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 2" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 50 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | GEVAX |
| Coil Voltage | 12V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 575 l/min |
| Tracking Number | 70AX |
| Coil Type | TP4 |
| Product Weight (kg.) | 3,745 |
