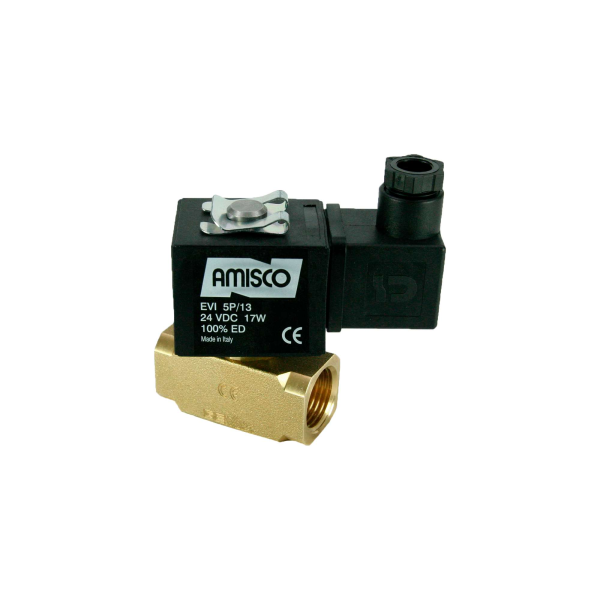

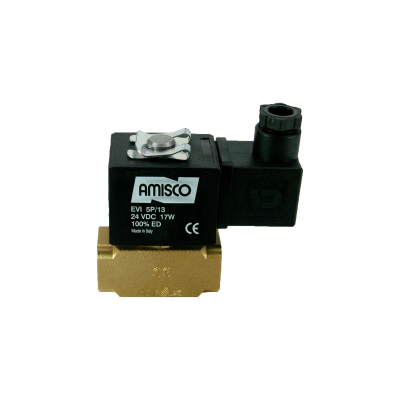

1901-ADED001-050-24DC | 1/2' N.O. Direct Acting EPDM 0-1 Bar 24VDC 17W
Log in to see prices here
1/2" Solenoid Valve N.O. Direct Acting EPDM 0 - 1 Bar 24V AC 19 VA
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Large orifice, high flow rate, wide application range. Air, Water, Gas, Vacuum, Chemical, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Irrigation, Cooling, Compressor, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1901-ADED001-050-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 1 |
| Orifice Size (mm) | 5 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 8 l/min |
| Tracking Number | 77AH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.445 |
