1901-AHNE006-200-12DC | 3/4' N.O. Assisted Lift Diaphragm Controlled NBR 0-6 Bar 12VDC 17W
Log in to see prices here

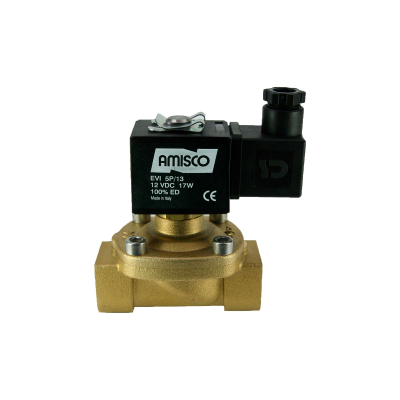

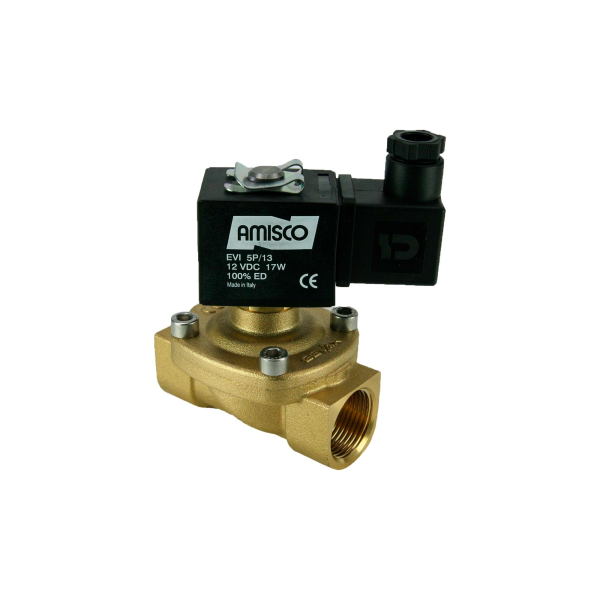

3/4" Solenoid Valve N.O. Assisted Lift Diaphragm Controlled NBR 0 - 6 Bar 12V DC 17 W
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Diaphragm type, high flow rate, suitable for tank filling/draining systems, radiator hot water circulation systems, etc. Air, Water, Vacuum, Chemical Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems
Product information
- Product code 1901-AHNE006-200-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 3/4" |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Diaphragm Controlled |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 6 |
| Orifice Size (mm) | 20 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 90 l/min |
| Tracking Number | 81AL |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.775 |
