1901-KBEE016-190-G220AC | 3/4' N.C. Pilot Operated EPDM 0.5-16 Bar G220VAC 19VA
Log in to see prices here

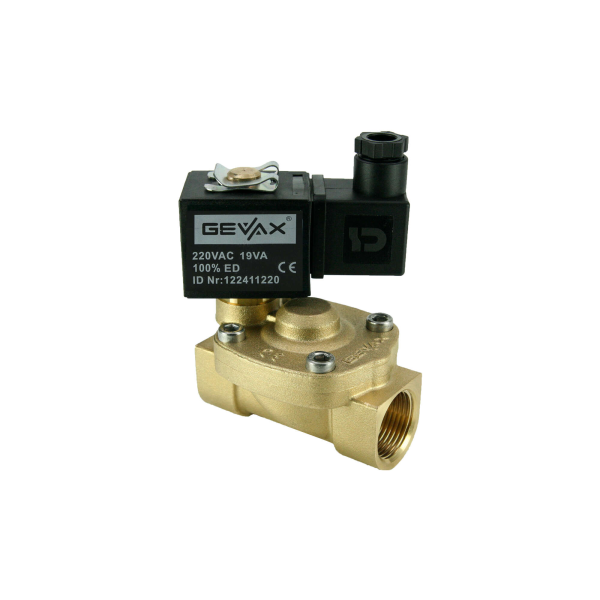

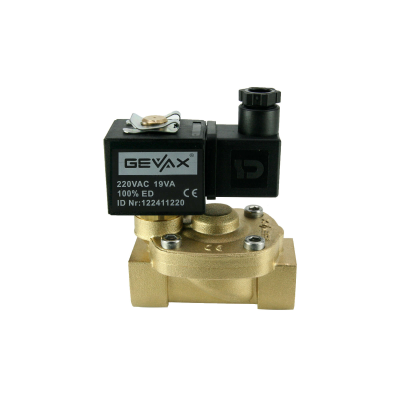

3/4" Solenoid Valve N.C. Pilot Operated EPDM 0.5 - 16 Bar G220V AC 19 VA
Product information
- Product code 1901-KBEE016-190-G220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 3/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 19 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | GEVAX |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 110 l/min |
| Tracking Number | 07AL |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.825 |
