1901-KBEG010-320-G220AC | 1 1/4' N.C. Pilot Operated EPDM 0.5-10 Bar G220VAC 19VA
Log in to see prices here

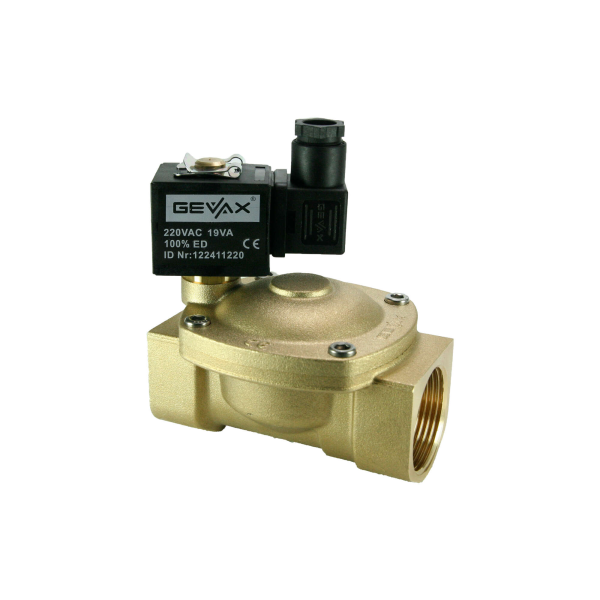

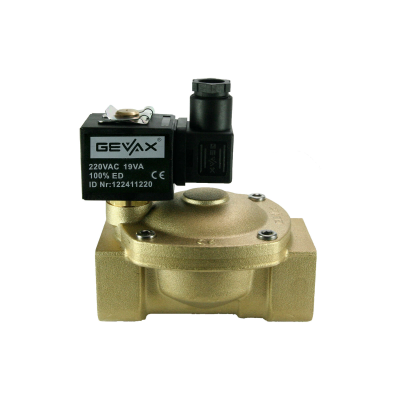

1 1/4" Solenoid Valve N.C. Pilot Operated EPDM 0.5 - 10 Bar G220V AC 19 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Diaphragm type, wide application range, high flow rate, wide coil options. Air, Water, Gas, Chemical, Hot Water Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Compressor, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1901-KBEG010-320-G220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 32 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | GEVAX |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 250 l/min |
| Tracking Number | 03AS |
| Coil Type | TP4 |
| Product Weight (kg.) | 1.515 |
