1901-KBVD040-120-G12DC | 1/2" Solenoid Valve N.C. Pilot Operated FKM 0.5 - 40 Bar G12V DC 17 W
Log in to see prices here

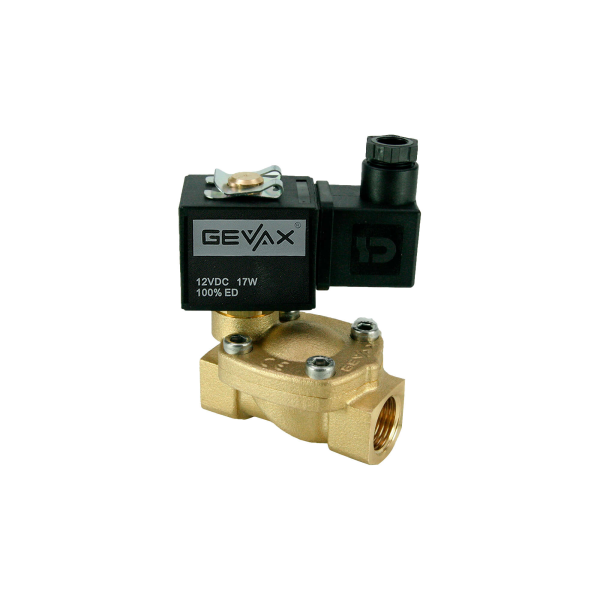

1/2" Solenoid Valve N.C. Pilot Operated FKM 0.5 - 40 Bar G12V DC 17 W
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Cloth-reinforced diaphragm, resistant to high pressure. Air, Water, Gas, Chemical, Hot Water, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. High Differential Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Lubrication, Compressor, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1901-KBVD040-120-G12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 40 |
| Orifice Size (mm) | 12 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | GEVAX |
| Coil Voltage | 12V DC |
| Coil Power | 17 W |
| Body Material | Stainlees Steels |
| KV Value | 65 l/min |
| Tracking Number | 51AH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0,655 |
