1901-KDNB016-025-G24DC | 1/4' N.C. Direct Acting NBR 0-16 Bar G24VDC 17W
Log in to see prices here

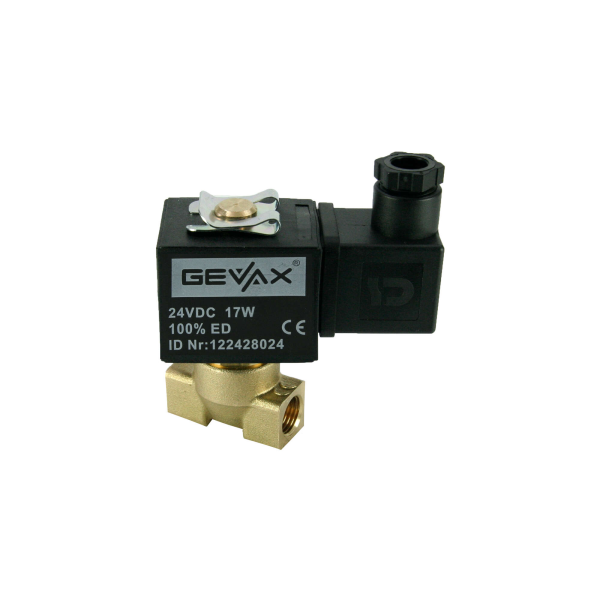

1/4" Solenoid Valve N.C. Direct Acting NBR 0 - 16 Bar G24V DC 17 W
Product information
- Product code 1901-KDNB016-025-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 2.5 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 2.85 l/min |
| Tracking Number | 11AC |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.375 |
