1901-KDNB025-020-24AC | 1/4' N.C. Direct Acting NBR 0-25 Bar 24VAC 19VA
Log in to see prices here

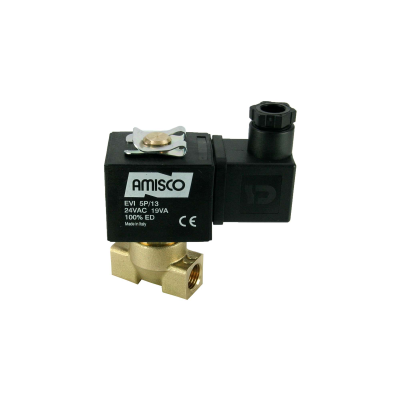

1/4" Solenoid Valve N.C. Direct Acting NBR 0 - 25 Bar 24V AC 19 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Wide application range, wide coil options. Air, Water, Gas, Vacuum, Chemical, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Irrigation, Cooling, Lubrication, Compressor, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1901-KDNB025-020-24AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 25 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 22AC |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.375 |
