1901-KDNC1P5-080-12DC | 3/8' N.C. Direct Acting NBR 0-1.5 Bar 12VDC 17W
Log in to see prices here

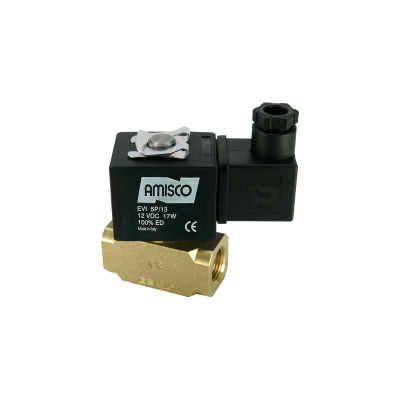

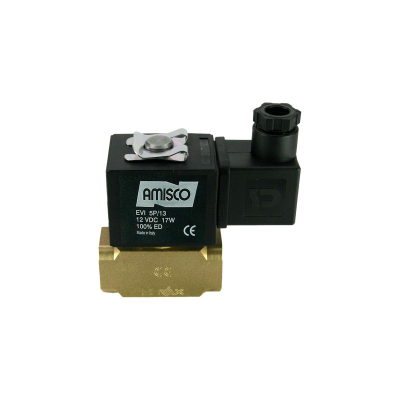

3/8" Solenoid Valve N.C. Direct Acting NBR 0 - 1.5 Bar 12V DC 17 W
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Large orifice, high flow rate, wide application range. Air, Water, Gas, Vacuum, Chemical, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Irrigation, Cooling, Lubrication, Compressor, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1901-KDNC1P5-080-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 3/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 1.5 |
| Orifice Size (mm) | 8 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 15 l/min |
| Tracking Number | 35AF |
| Coil Type | TP4 |
