1901-KDPD005-060-24DC | 1/2' N.C. Direct Acting PTFE 0-5 Bar 24VDC 17W
Log in to see prices here

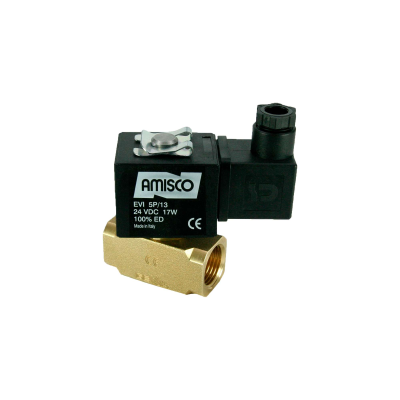

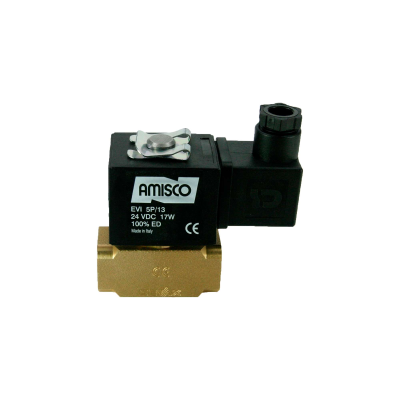

1/2" Solenoid Valve N.C. Direct Acting PTFE 0 - 5 Bar 24V DC 17 W
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Large orifice, high flow rate, wide application range. Water, Chemical, Hot Water, Oils, Diesel Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Irrigation, Cooling, Lubrication, Building Automation, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1901-KDPD005-060-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | PTFE |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 5 |
| Orifice Size (mm) | 6 |
| Temperature (°C) | -10°C +160°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 10 l/min |
| Tracking Number | 63AH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.445 |
