1901-KDVB016-018-220AC | 1/4' N.C. Direct Acting FKM 0-16 Bar 220VAC 13VA
Log in to see prices here

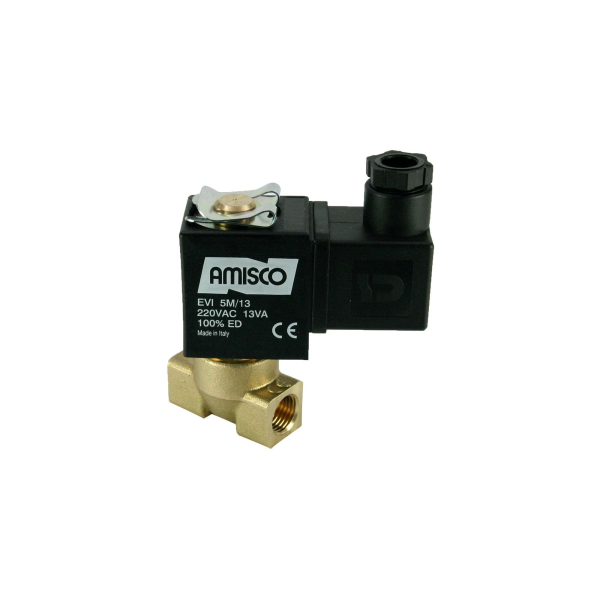

1/4" Solenoid Valve N.C. Direct Acting FKM 0 - 16 Bar 220V AC 13 VA
Product information
- Product code 1901-KDVB016-018-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 1.8 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 13 VA |
| Body Material | Brass |
| KV Value | 1.5 l/min |
| Tracking Number | 04BC |
| Coil Type | TP1 |
| Product Weight (kg.) | 0.31 |
