1901-KHNH010-400-230AC | 1 1/2" N.C. Assisted Lift Diaphragm Controlled NBR 0 - 10 Bar 230V AC 19 VA
Log in to see prices here

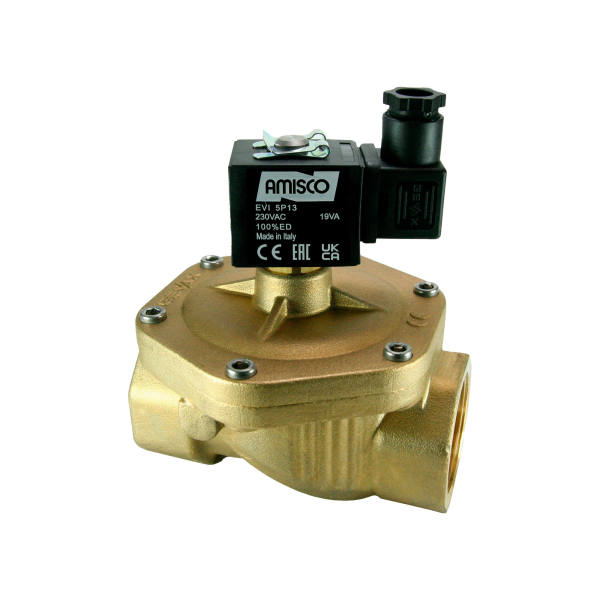

1 1/2" Solenoid Valve N.C. Assisted Lift Diaphragm Controlled NBR 0 - 10 Bar 230V AC 19 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Diaphragm type, high flow rate, suitable for tank filling/draining systems, radiator hot water circulation systems, etc. Air, Water, Vacuum, Chemical Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems
Product information
- Product code 1901-KHNH010-400-230AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Diaphragm Controlled |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 40 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 230V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 250 l/min |
| Tracking Number | 10AU |
| Coil Type | TP4 |
| Product Weight (kg.) | 2,715 |
