1901C-KBNF016-250-24DC I 1" Solenoid Valve N.C. Nickel Plated Pilot Operated NBR 0.5 - 16 Bar 24V DC 10 W
Log in to see prices here

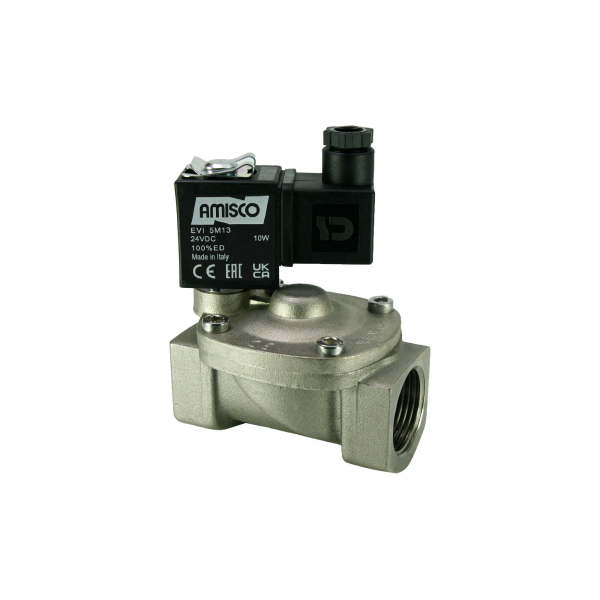

1" Solenoid Valve N.C. Nickel Plated Pilot Operated NBR 0.5 - 16 Bar 24V DC 10 W
The prominent features of the nickel plated body normally closed general purpose solenoid valve you are reviewing: Diaphragm type, wide application range, high flow rate, wide coil options, corrosion-resistant nickel plating. Air, Water, Gas, Chemical Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Compressor, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1901C-KBNF016-250-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 25 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 10 W |
| Body Material | Stainlees Steels |
| KV Value | 180 l/min |
| Tracking Number | 17AO |
| Coil Type | TP4 |
| Product Weight (kg.) | 1,155 |
