1902-ABHD016-120-12DC | 1/2' N.O. 3/2 Ways For Compressor Pilot Operated HNBR 0.5-16 Bar 12VDC 17W
Log in to see prices here

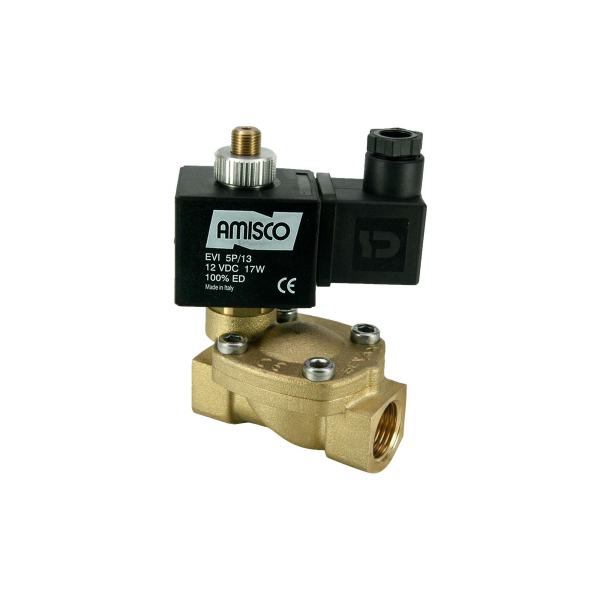

1/2" Solenoid Valve N.O. 3/2 Ways For Compressor Pilot Operated HNBR 0.5 - 16 Bar 12V DC 17 W
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Diaphragm Air Recommended for use in applications such as etc. Pneumatic works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process
Product information
- Product code 1902-ABHD016-120-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 3/2 |
| Position | Normally Open |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | HNBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 12 |
| Temperature (°C) | -10°C +120°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 65 l/min |
| Tracking Number | 72WH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.665 |
