1902-ABVD016-120-24AC | 1/2' N.O. 3/2 Ways For Compressor Pilot Operated FKM 0.5-16 Bar 24VAC 19VA
Log in to see prices here

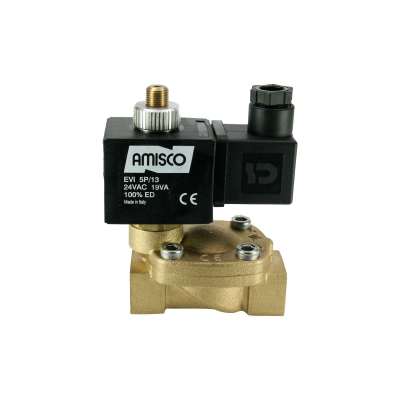

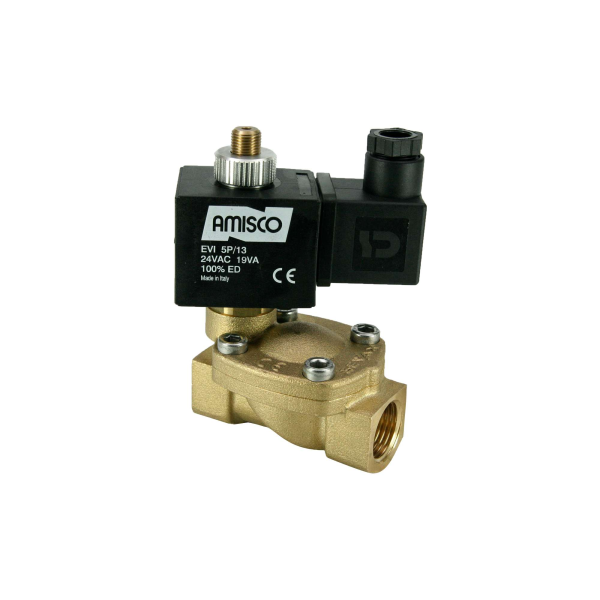

1/2" Solenoid Valve N.O. 3/2 Ways For Compressor Pilot Operated FKM 0.5 - 16 Bar 24V AC 19 VA
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Diaphragm Air Recommended for use in applications such as etc. Pneumatic works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process
Product information
- Product code 1902-ABVD016-120-24AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 3/2 |
| Position | Normally Open |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 12 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 65 l/min |
| Tracking Number | 71WH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.665 |
