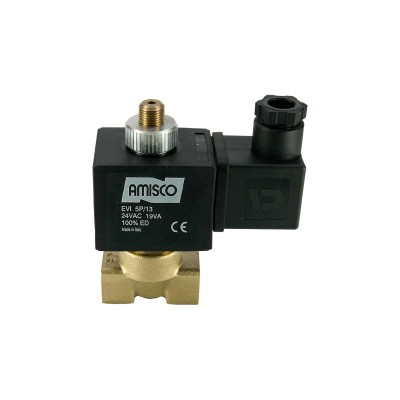

1902-ADVA006-018-24AC | 1/8' N.O. 3/2 Ways Top Inlet Direct Acting FKM 0-6 Bar 24VAC 19VA
Log in to see prices here
1/8" Solenoid Valve N.O. 3/2 Ways Top Inlet Direct Acting FKM 0 - 6 Bar 24V AC 19 VA
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Variety in coil Air, Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure, Pneumatic works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process
Product information
- Product code 1902-ADVA006-018-24AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 3/2 |
| Position | Normally Open |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 6 |
| Orifice Size (mm) | 1.8 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 1.5 l/min |
| Tracking Number | 70WA |
| Coil Type | TP4 |
