1902-KDVA010-015-24DC | 1/8' N.C. 3/2 Ways Direct Acting FKM 0-10 Bar 24VDC 17W
Log in to see prices here

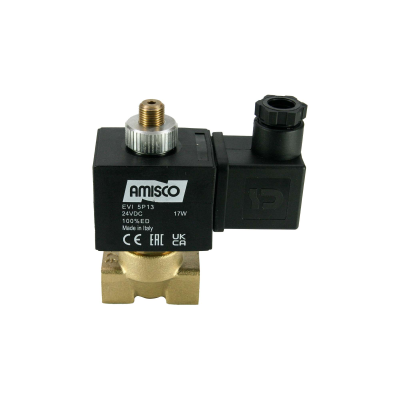

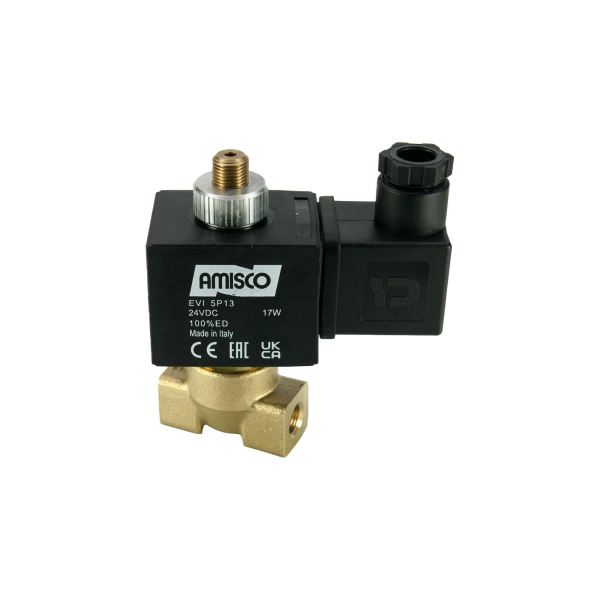

1/8" Solenoid Valve N.C. 3/2 Ways Direct Acting FKM 0 - 10 Bar 24V DC 17 W
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Variety in coil Air, Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure, Pneumatic works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process
Product information
- Product code 1902-KDVA010-015-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 3/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 1.5 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 1 l/min |
| Tracking Number | 05WA |
| Coil Type | TP4 |
