1902-KDVB007-020-12DC | 1/4' N.C. 3/2 Ways Direct Acting FKM 0-7 Bar 12VDC 17W
Log in to see prices here

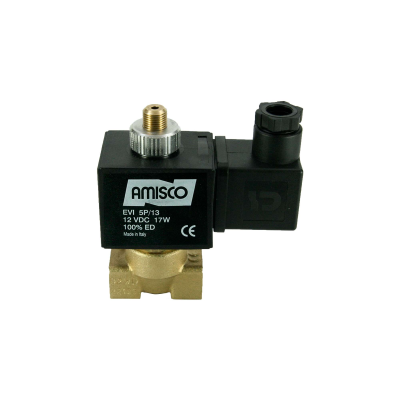

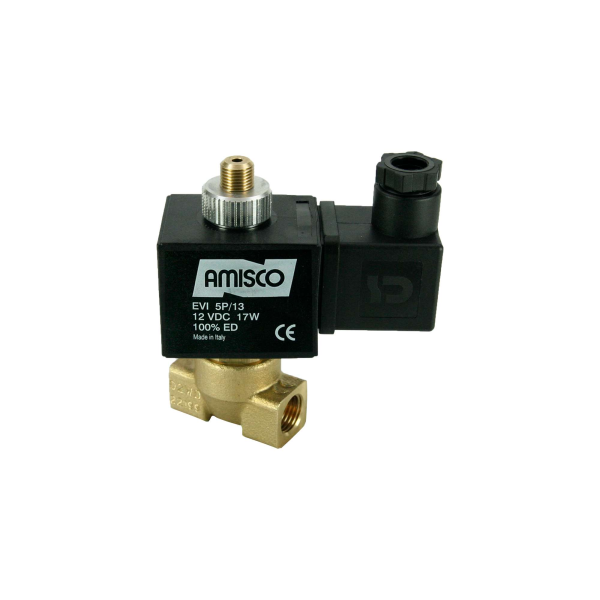

1/4" Solenoid Valve N.C. 3/2 Ways Direct Acting FKM 0 - 7 Bar 12V DC 17 W
Product information
- Product code 1902-KDVB007-020-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/4" |
| Number of Paths | 3/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 7 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V DC |
| Coil Power | 17 W |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 07WD |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.375 |
