1931-KBED016-120-24AC | 1/2' N.C. Economical Serie Pilot Operated EPDM 0.5-16 Bar 24VAC 8.5VA
Log in to see prices here

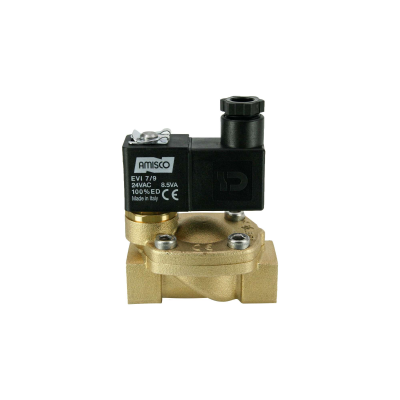

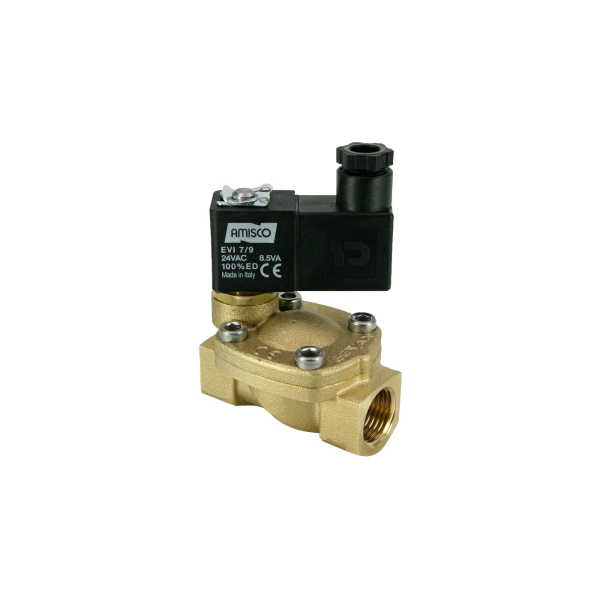

1/2" Solenoid Valve N.C. Economical Serie Pilot Operated EPDM 0.5 - 16 Bar 24V AC 8.5 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Diaphragm type, low power consumption, high flow rate. Air, Water, Gas, Chemical, Hot Water Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1931-KBED016-120-24AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 12 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V AC |
| Coil Power | 8.5 VA |
| Body Material | Brass |
| KV Value | 65 l/min |
| Tracking Number | 32AH |
| Coil Type | TP6 |
| Product Weight (kg.) | 0.495 |
