1931-KBNC010-100-12DC | 3/8' N.C. Economical Serie Pilot Operated NBR 0.5-10 Bar 12VDC 6.5W
Log in to see prices here

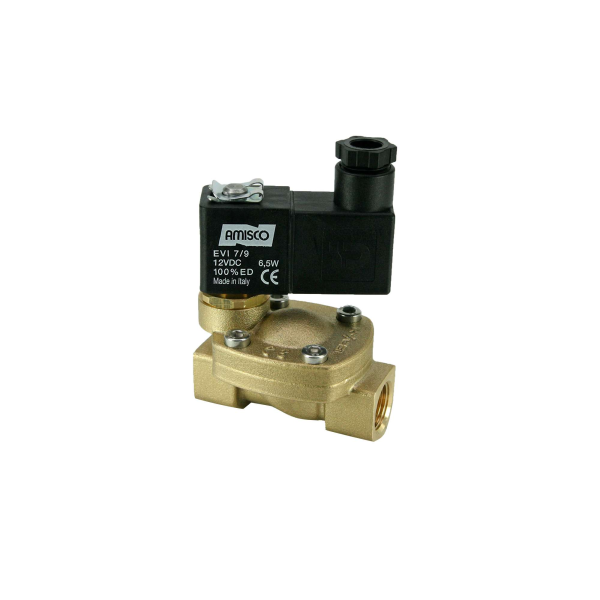

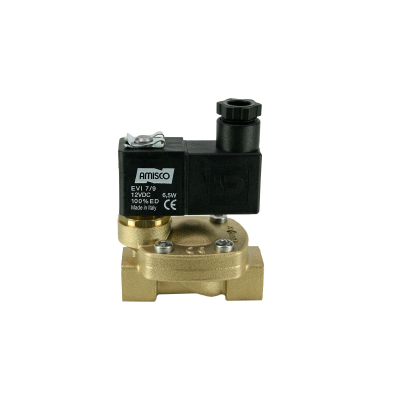

3/8" Solenoid Valve N.C. Economical Serie Pilot Operated NBR 0.5 - 10 Bar 12V DC 6.5 W
Product information
- Product code 1931-KBNC010-100-12DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 3/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 10 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 12V DC |
| Coil Power | 6.5 W |
| Body Material | Brass |
| KV Value | 30 l/min |
| Tracking Number | 13AF |
| Coil Type | TP6 |
| Product Weight (kg.) | 0.425 |
