1931-KBNE016-190-230AC | 3/4' N.C. Economical Serie Pilot Operated NBR 0.5-16 Bar 230VAC 8.5VA
Log in to see prices here

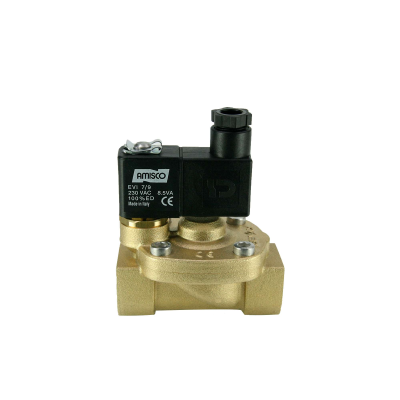

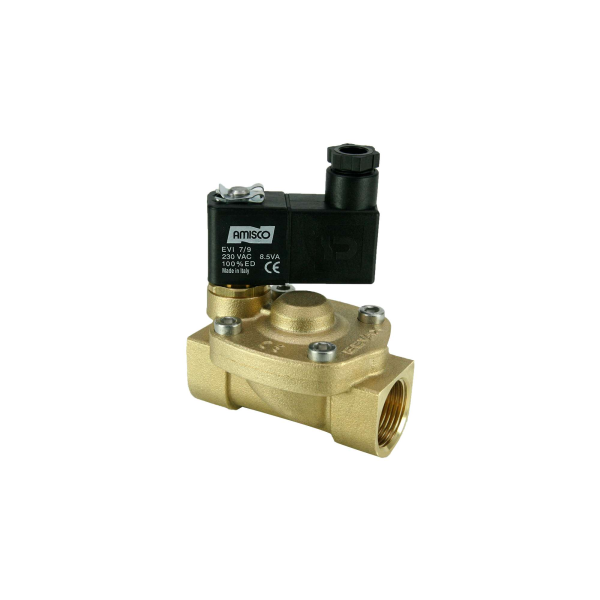

3/4" Solenoid Valve N.C. Economical Serie Pilot Operated NBR 0.5 - 16 Bar 230V AC 8.5 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Diaphragm type, low power consumption, high flow rate. Air, Water, Gas, Chemical Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1931-KBNE016-190-230AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 3/4" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 19 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 230V AC |
| Coil Power | 8.5 VA |
| Body Material | Brass |
| KV Value | 110 l/min |
| Tracking Number | 10AL |
| Coil Type | TP6 |
| Product Weight (kg.) | 0.635 |
