1931-KDVA016-020-220AC | 1/8' N.C. Economical Serie Direct Acting FKM 0-16 Bar 220VAC 8.5VA
Log in to see prices here

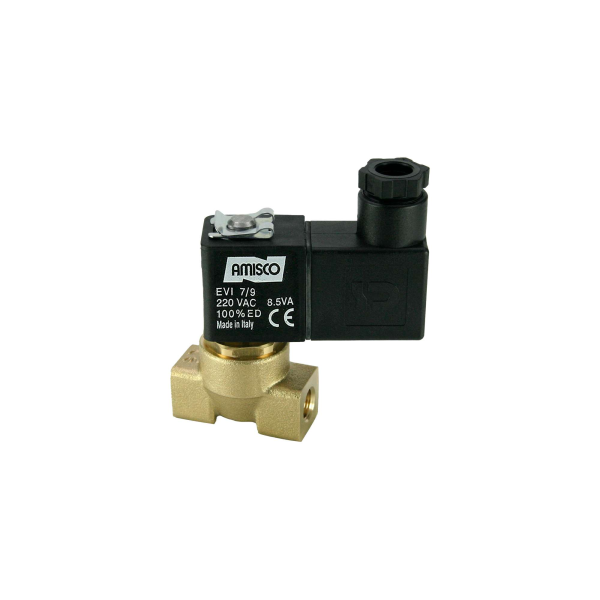

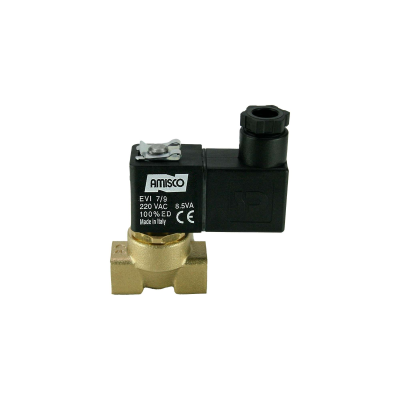

1/8" Solenoid Valve N.C. Economical Serie Direct Acting FKM 0 - 16 Bar 220V AC 8.5 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Low power consumption. Air, Water, Gas, Chemical, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry
Product information
- Product code 1931-KDVA016-020-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 8.5 VA |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 33AA |
| Coil Type | TP6 |
