1961-KDNA016-020-220AC | 1/8' N.C. Economical Serie Mini Model Direct Acting NBR 0-16 Bar 220VAC
Log in to see prices here

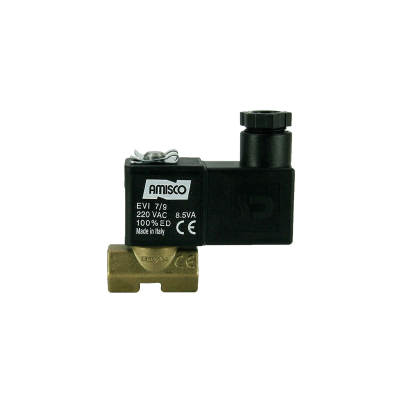

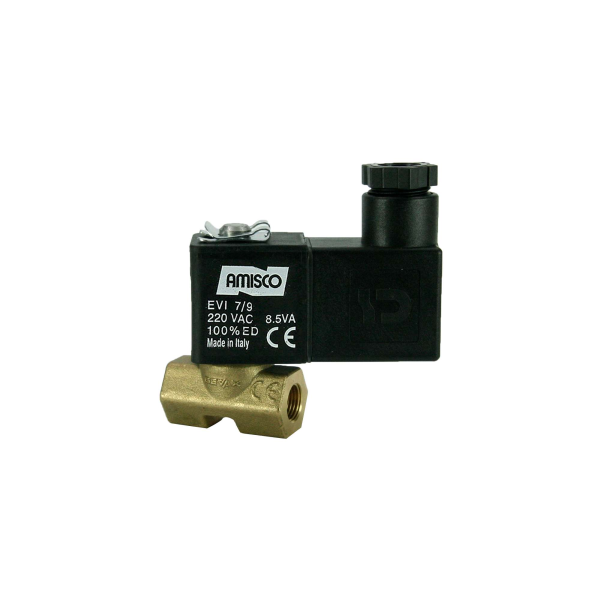

1/8" Solenoid Valve N.C. Economical Serie Mini Model Direct Acting NBR 0 - 16 Bar 220V AC 8.5 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Mini body, economic series, energy-efficient, compact size, low power consumption, wide application range. Air, Water, Gas, Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Compressor, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Paint Industry
Product information
- Product code 1961-KDNA016-020-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/8" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 2 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 8.5 VA |
| Body Material | Brass |
| KV Value | 1.7 l/min |
| Tracking Number | 27AA |
| Coil Type | TP6 |
| Product Weight (kg.) | 0.155 |
