1971-AHVD010-150-230AC | 1/2" N.O. SS Tube Assisted Lift Diaphragm Controlled FKM 0-10 Bar230VAC19VA
Log in to see prices here

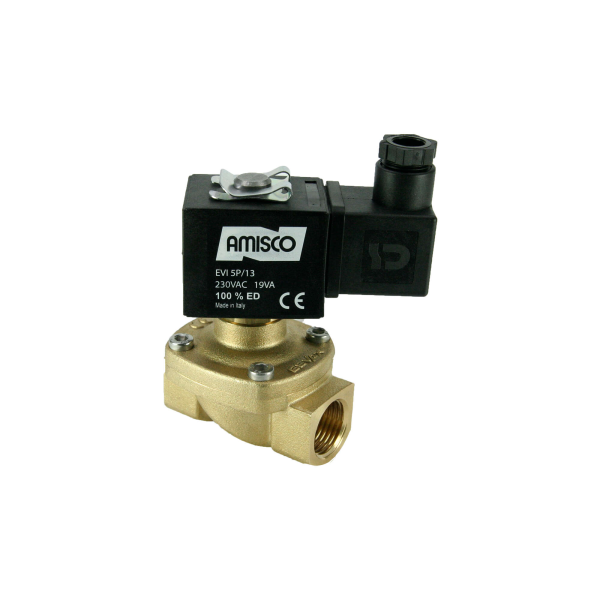

1/2" Solenoid Valve N.O. SS Tube Assisted Lift Diaphragm Controlled FKM 0 - 10 Bar 230V AC 19 VA
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Special valve. Air, Water, Vacuum, Chemical, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems
Product information
- Product code 1971-AHVD010-150-230AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" NPT |
| Number of Paths | 2/2 |
| Position | Normally Open |
| Working Principle | Diaphragm Controlled |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 15 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 230V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 65 l/min |
| Tracking Number | 74AH |
| Coil Type | TP4 |
| Product Weight (kg.) | 0,625 |
