1971A-KDND006-050-24DC | 1/2' N.C. Aluminum SS Tube Direct Acting NBR 0-6 Bar 24VDC 17W
Log in to see prices here

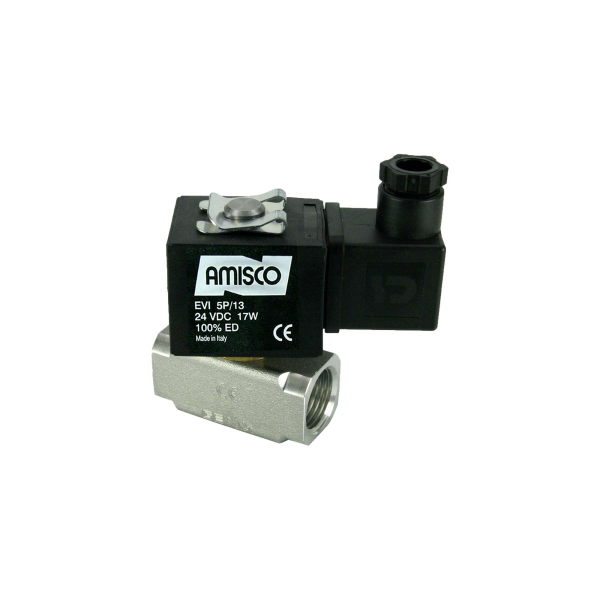

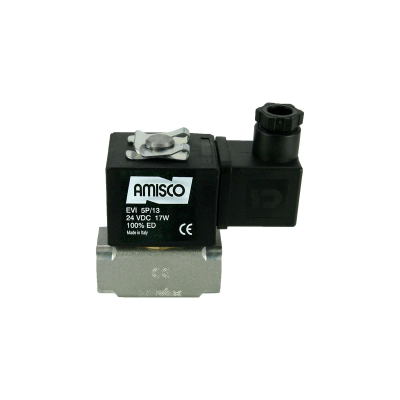

1/2" Solenoid Valve N.C. Aluminum SS Tube Direct Acting NBR 0 - 6 Bar 24V DC 17 W
The prominent features of the aluminum body normally closed general purpose solenoid valve you are reviewing: SS Tube Zero Differantial Pressure works on systems.
The usage area where the product is frequently preferred is;
Product information
- Product code 1971A-KDND006-050-24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | General Purpose Valves |
|---|---|
| Connection Size | 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Direct Acting |
| Gasket & Diaphragm | NBR |
| Min. Pressure (bar) | 0 bar |
| Max. Pressure (bar) | 6 |
| Orifice Size (mm) | 5 |
| Temperature (°C) | -10°C +80°C |
| Coil Brand | Amisco |
| Coil Voltage | 24V DC |
| Coil Power | 17 W |
| Body Material | Aluminum |
| KV Value | 8 l/min |
| Tracking Number | 13AI |
| Coil Type | TP4 |
| Product Weight (kg.) | 0.335 |
