1"N.C. Ex-Proof Low Differential Pressure Pilot Operated EPDM 0.1-16 Bar G24V DC11W
Log in to see prices here

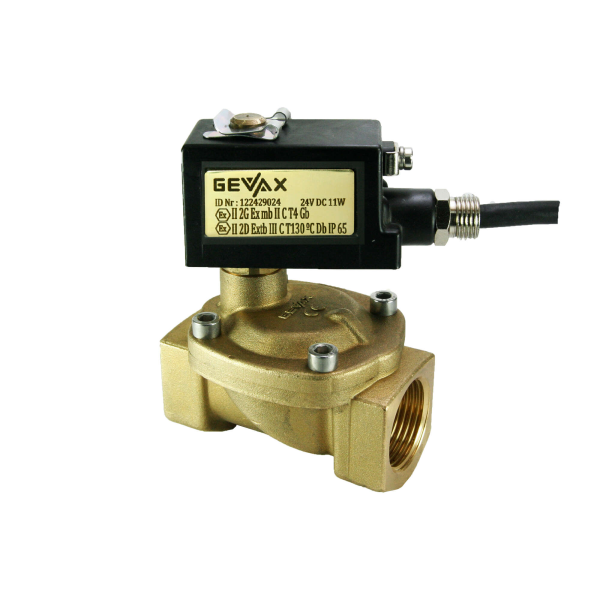

1" Solenoid Valve N.C. Ex-Proof Low Differential Pressure Pilot Operated EPDM 0.1 - 16 Bar G24V DC 11 W
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Diaphragm type, energy-efficient, high flow rate. Air, Water, Gas, Chemical, LPG & LNG Recommended for use in applications such as etc. Diaphragm type, energy-efficient, wide coil options. works on systems.
The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Building Automation, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems
Product information
- Product code 5811-KBEF016-250-G24DC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Ex-Proof Valves |
|---|---|
| Connection Size | 1" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | EPDM |
| Min. Pressure (bar) | 0.1 |
| Max. Pressure (bar) | 16 |
| Orifice Size (mm) | 25 |
| Temperature (°C) | -10°C +140°C |
| Coil Brand | GEVAX |
| Coil Voltage | 24V AC |
| Coil Power | 11 W |
| Body Material | Brass |
| KV Value | 180 l/min |
| Tracking Number | 04AO |
| Coil Type | TP4 |
| Product Weight (kg.) | 1,460 |
