2801-KBVH010-400-220AC | 1 1/2' N.C. For Fuel Oil Pilot Operated FKM 0.5-10 Bar 220VAC 19VA
Log in to see prices here

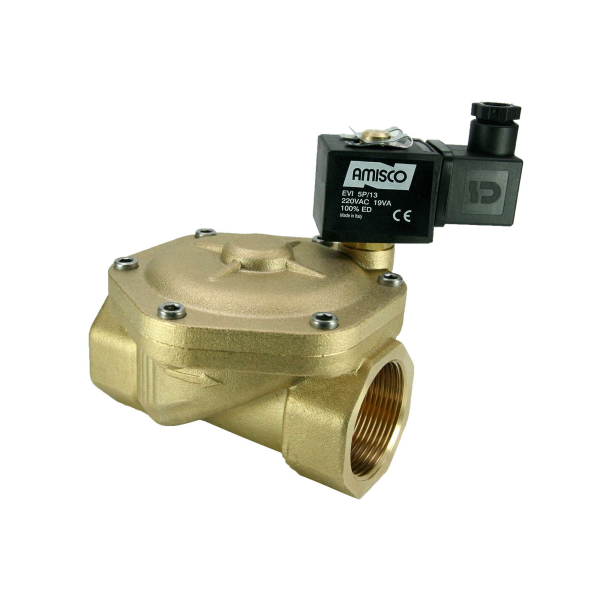

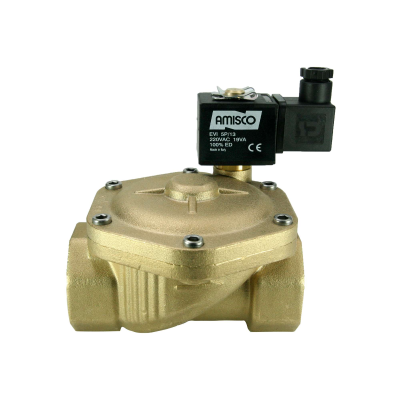

1 1/2" Solenoid Valve N.C. For Fuel Oil Pilot Operated FKM 0.5 - 10 Bar 220V AC 19 VA
The prominent features of the brass body normally closed fuel solenoid valve you are reviewing: Seal element suitable for fuel. Liquid Fuel, Chemical, LPG & LNG Recommended for use in applications such as etc.
The usage area where the product is frequently preferred is; Automotive, Textile, Renewable Energy, Recycling
Product information
- Product code 2801-KBVH010-400-220AC
- Brand GEVAXView all GEVAX products
- Remaining stock Only 999 left
| Valve Type | Fuel Valves |
|---|---|
| Connection Size | 1 1/2" |
| Number of Paths | 2/2 |
| Position | Normally Closed |
| Working Principle | Pilot Operated |
| Gasket & Diaphragm | FKM |
| Min. Pressure (bar) | 0.5 |
| Max. Pressure (bar) | 10 |
| Orifice Size (mm) | 40 |
| Temperature (°C) | -10°C +150°C |
| Coil Brand | Amisco |
| Coil Voltage | 220V AC |
| Coil Power | 19 VA |
| Body Material | Brass |
| KV Value | 390 l/min |
| Tracking Number | 01FU |
| Coil Type | TP4 |
| Product Weight (kg.) | 2.765 |
